Components [09/2019 - 11/2022]
WARNING: This page is about a different variant/trim than selected.

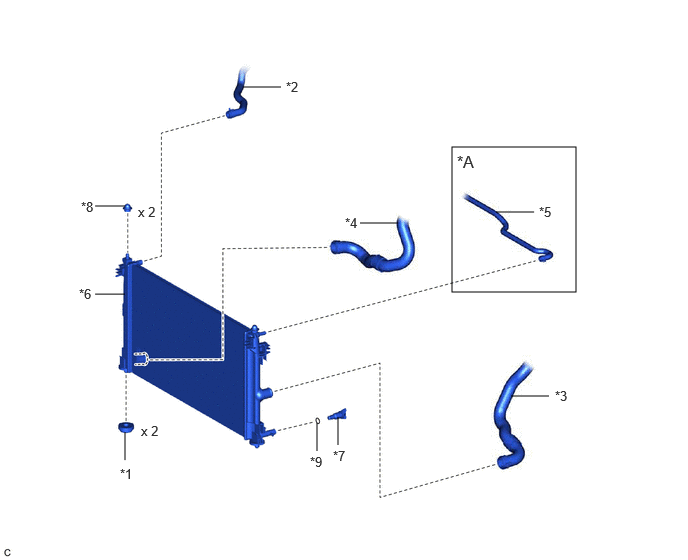

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Fully Sealed Type | - | - |
| *1 | LOWER RADIATOR SUPPORT | *2 | NO. 1 WATER BY-PASS HOSE |
| *3 | NO. 1 RADIATOR HOSE | *4 | NO. 2 RADIATOR HOSE |
| *5 | NO. 2 WATER BY-PASS HOSE | *6 | RADIATOR ASSEMBLY |
| *7 | RADIATOR DRAIN COCK PLUG | *8 | RADIATOR SUPPORT CUSHION |
| *9 | O-RING | - | - |
