Removal [09/2022 - ]: Procedure

Refer to REMOVAL [09/2022 - ]

Refer to PROCEDURE - Step 2

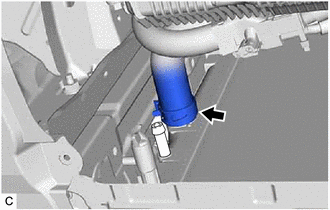

1. Slide the clip and disconnect the No. 2 water by-pass hose from the radiator assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

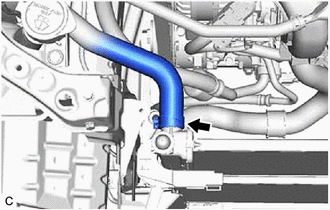

1. Slide the clip and disconnect the No. 1 radiator hose from the radiator assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

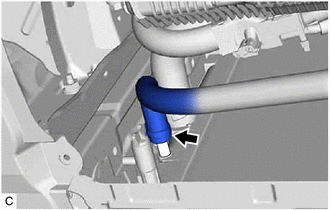

1. Slide the clip and disconnect the No. 1 water by-pass hose from the radiator assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

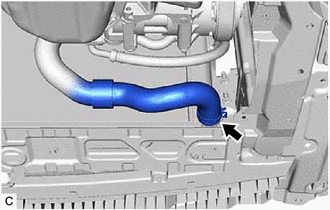

1. Slide the clip and disconnect the No. 2 radiator hose from the radiator assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

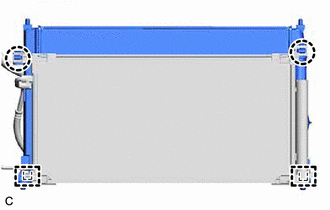

1. Disengage the 2 claws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the 2 guides to separate the cooler condenser assembly from the radiator assembly.
   NOTE:

   Make sure not to damage the cooler condenser assembly when separating the cooler condenser assembly.

3. Remove the radiator assembly from the vehicle body.
   NOTE:

   Do not apply excessive force to the cooler condenser assembly or pipe when removing the radiator assembly.

1. Remove the 2 radiator support cushions from the radiator assembly.

1. Remove the 2 lower radiator supports from the radiator assembly.

1. Remove the radiator drain cock plug.
2. Remove the O-ring from the radiator drain cock plug.
