Components [09/2022 - ]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Flow Shutting Valve (For Heater) Replacement Components With Torque Specifications [09/2022 - ] (1 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *C | Type C | - | - |
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

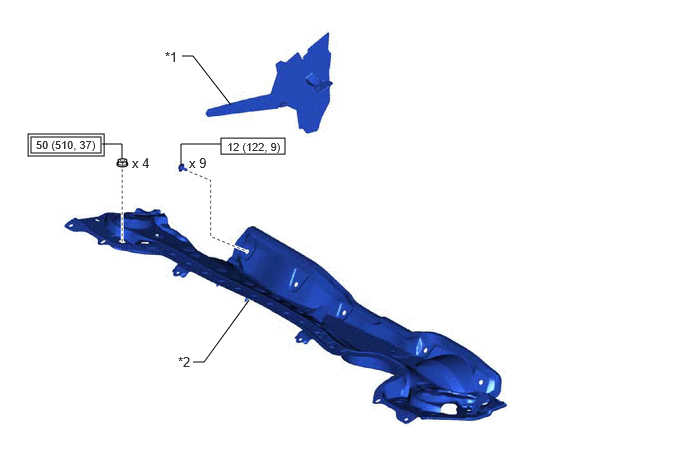

Fig 2: Flow Shutting Valve (For Heater) Replacement Components With Torque Specifications [09/2022 - ] (2 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL | *2 | OUTER COWL TOP PANEL SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |

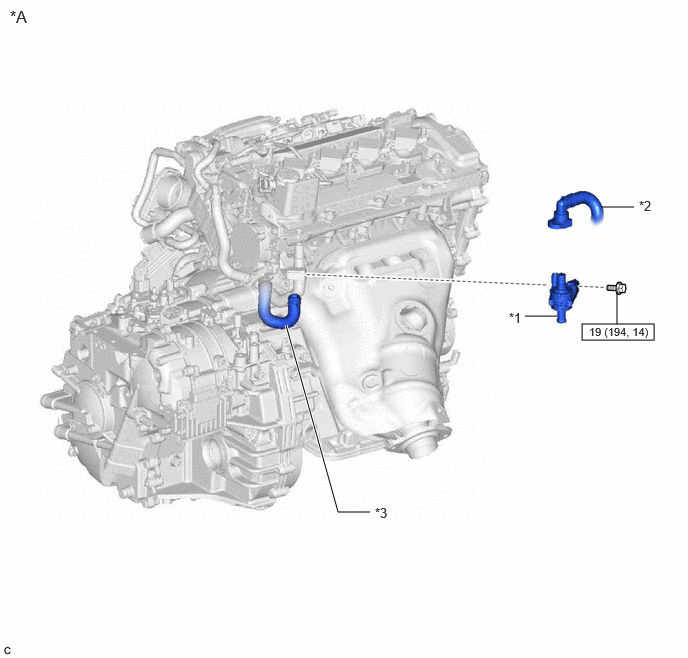

Fig 3: Flow Shutting Valve (For Heater) Replacement Components With Torque Specifications [09/2022 - ] (3 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | except TMC Made | - | - |
| *1 | FLOW SHUTTING VALVE (WATER VALVE) | *2 | INLET HEATER WATER HOSE |
| *3 | WATER BY-PASS HOSE ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

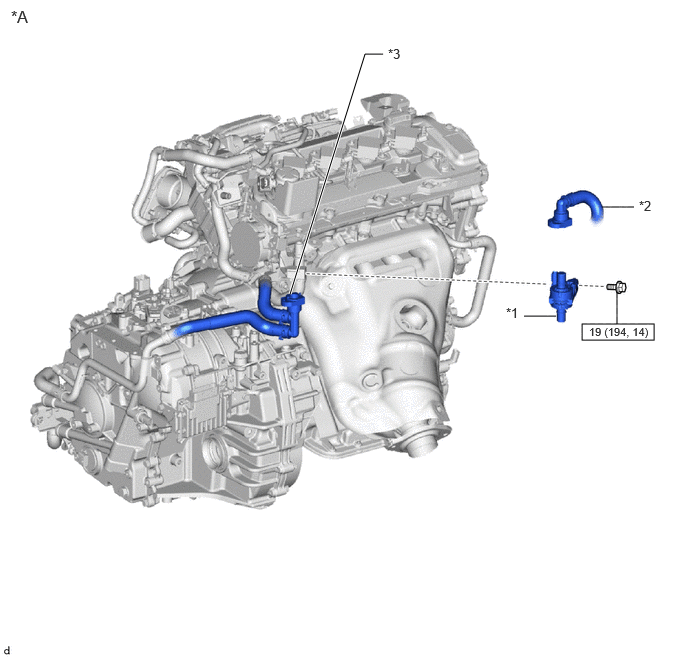

Fig 4: Flow Shutting Valve (For Heater) Replacement Components With Torque Specifications [09/2022 - ] (4 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for TMC Made | - | - |
| *1 | FLOW SHUTTING VALVE (WATER VALVE) | *2 | INLET HEATER WATER HOSE |
| *3 | WATER BY-PASS HOSE ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
