Components [06/2018 - 03/2019]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Flow Shutting Valve (For CVT) Replacement Components With Torque Specifications [06/2018 - 03/2019] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

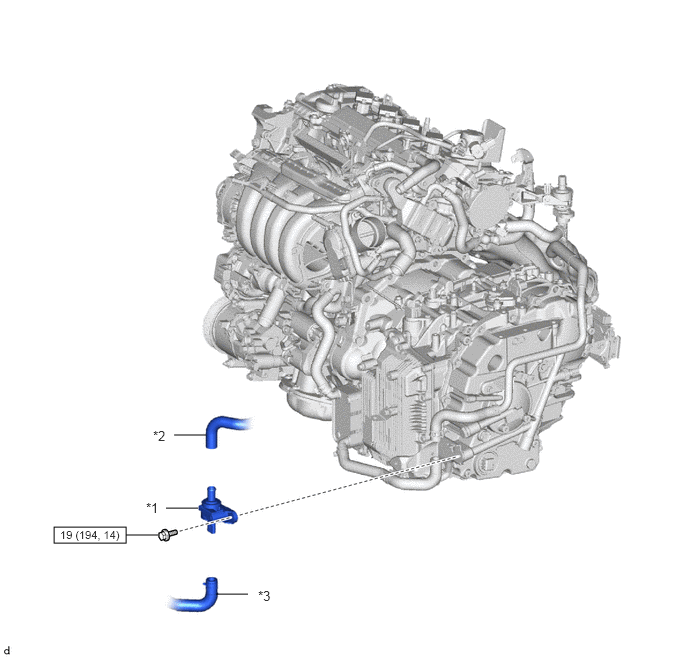

Fig 2: Flow Shutting Valve (For CVT) Replacement Components With Torque Specifications [06/2018 - 03/2019] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FLOW SHUTTING VALVE (WATER VALVE) | *2 | NO. 3 WATER BY-PASS HOSE |
| *3 | NO. 4 WATER BY-PASS HOSE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
