Components [09/2019 - ]

WARNING: This page is about a different variant/trim than selected.

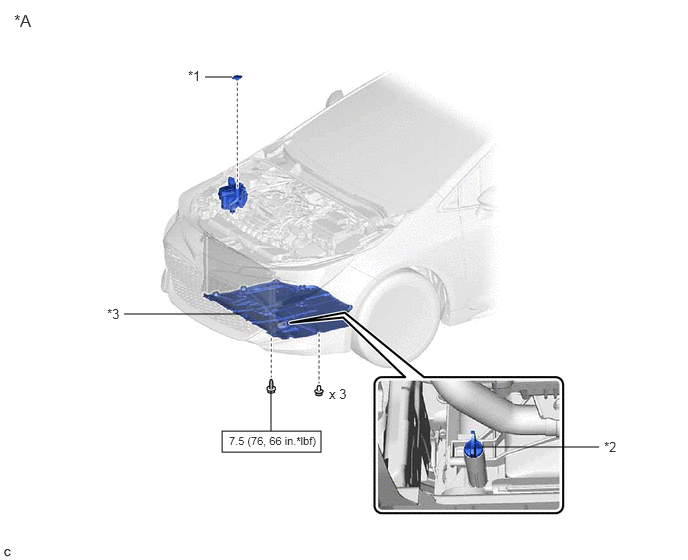

Fig 1: Coolant Replacement Components With Torque Specifications [09/2019 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	for Fully Sealed Type	-	-
*1	RESERVE TANK CAP	*2	RADIATOR DRAIN COCK PLUG
*3	NO. 1 ENGINE UNDER COVER ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

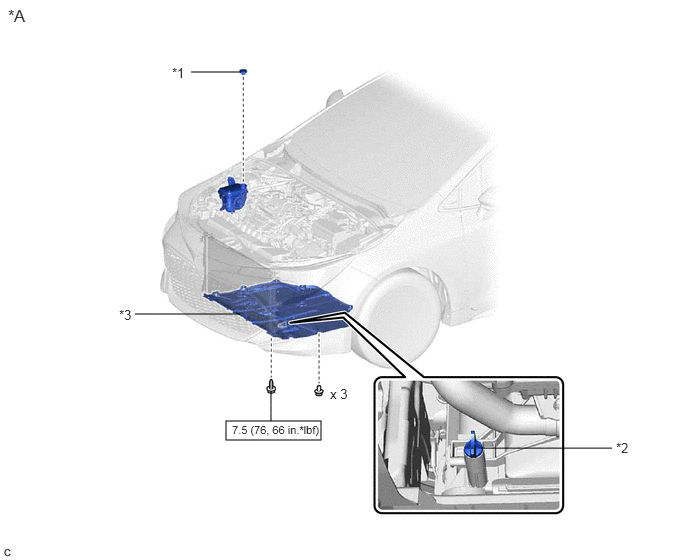

Fig 2: Coolant Replacement Components With Torque Specifications [09/2019 - ] (2 Of 2)

Callout	Description	Callout	Description
*A	for Non-Fully Sealed Type	-	-
*1	RADIATOR CAP SUB-ASSEMBLY	*2	RADIATOR DRAIN COCK PLUG
*3	NO. 1 ENGINE UNDER COVER ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
