Components [06/2018 - 09/2019]

WARNING: This page is about a different variant/trim than selected.

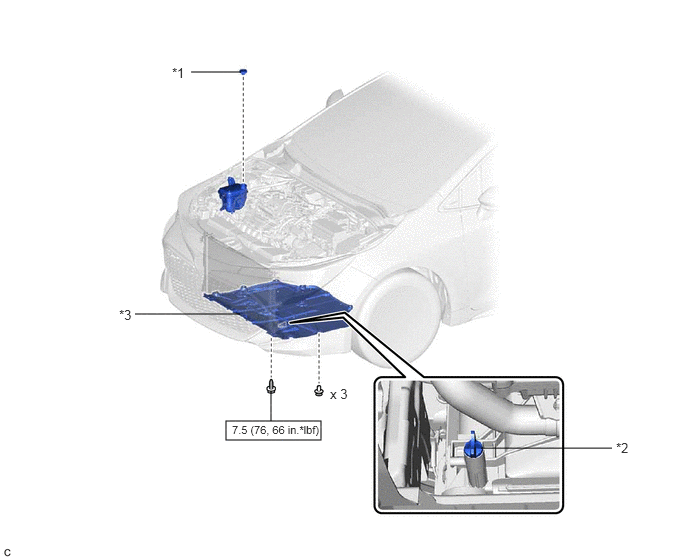

Fig 1: Coolant Replacement Components With Torque Specifications [06/2018 - 09/2019]
GTY857134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 RESERVE TANK CAP *2 RADIATOR DRAIN COCK PLUG
*3 NO. 1 ENGINE UNDER COVER ASSEMBLY - -
N.m (kgf/cm, ft.lbf): Specified torque - -
