Removal [09/2022 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 9 [09/2022 - 11/2022] , or refer to PROCEDURE - Step 9 [11/2022 - 03/2023] , or refer to PROCEDURE - Step 9 [03/2023 - 09/2024] , or refer to PROCEDURE - Step 9 [09/2024 - ]

  2. REMOVE HEADLIGHT ASSEMBLY

    Refer to REMOVAL [09/2022 - ]

  3. REMOVE INLET NO. 1 AIR CLEANER

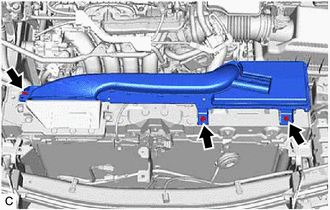

    1. Remove the 3 bolts and inlet No. 1 air cleaner from the upper radiator support sub-assembly and inlet No. 2 air cleaner.
      GTY1103326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE INLET NO. 2 AIR CLEANER

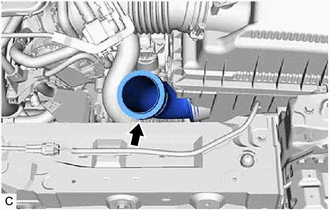

    1. Remove the inlet No. 2 air cleaner from the air cleaner case sub-assembly.
      GTY1103325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE HOOD LOCK ASSEMBLY

    Refer to PROCEDURE - Step 5 [09/2022 - 11/2022] , or refer to PROCEDURE - Step 5 [11/2022 - 09/2024] , or refer to PROCEDURE - Step 5 [09/2024 - ]

  6. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY

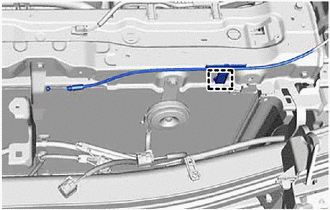

    1. Disengage the clamp to disconnect the hood lock control cable assembly from the upper radiator support sub-assembly.
      GTY858600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

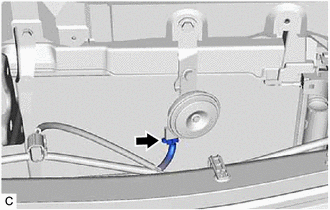

    2. Disconnect the horn connector.
      GTY1103324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

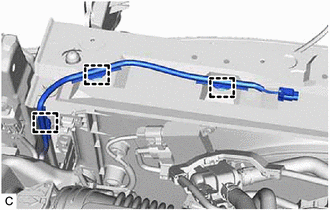

    3. Disengage the 3 clamps to disconnect the wire harness from the upper radiator support sub-assembly.
      GTY1108388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

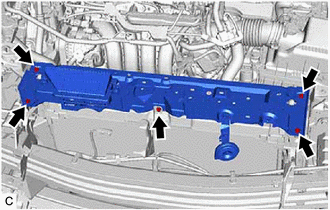

    4. Remove the 5 bolts and upper radiator support sub-assembly.
      GTY1103322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. DISCONNECT NO. 2 RADIATOR HOSE

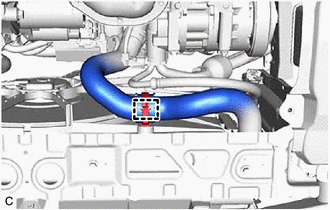

    1. Disengage the clamp and disconnect the No. 2 radiator hose from the hose clamp.
      GTY1103323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE NO. 2 RADIATOR AIR GUIDE

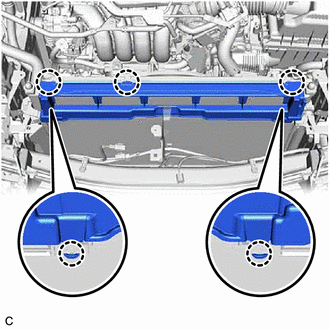

    1. Disengage the 5 claws to remove the No. 2 radiator air guide.
      GTY1103321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE FAN WITH MOTOR ASSEMBLY

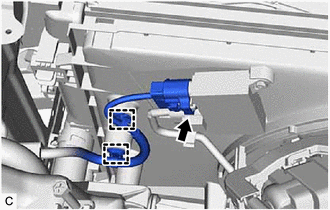

    1. Disconnect the cooling fan ECU connector.
      GTY1103320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

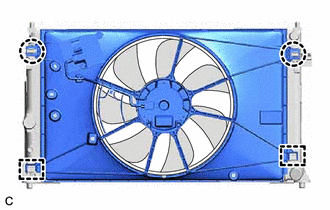

    2. Disengage the 2 wire harness clamps.
    3. Disengage the 2 claws.
      GTY1108387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 2 guides to remove the fan with motor assembly from the radiator assembly.
      NOTE:

      Do not damage the radiator assembly when removing the fan with motor assembly.

  10. REMOVE FAN

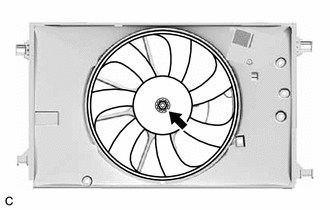

    1. Remove the nut and fan from the cooling fan motor.
      GTY1103318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE COOLING FAN MOTOR

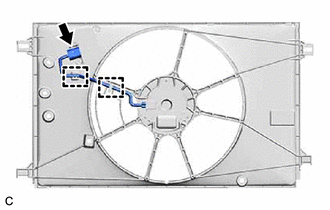

    1. Disengage the 2 clamps to disconnect the wire harness from the fan shroud.
      GTY1103319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the cooling fan motor connector.

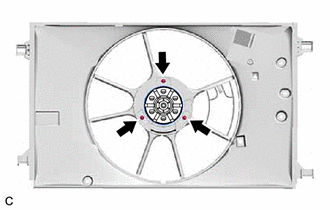

    3. Remove the 3 screws and cooling fan motor from the fan shroud.
      GTY1108386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
