Components [09/2022 - ]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Cooling Fan Motor (W/ Cooling Fan ECU) Replacement Components With Torque Specifications (1 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *C | Type C | - | - |
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

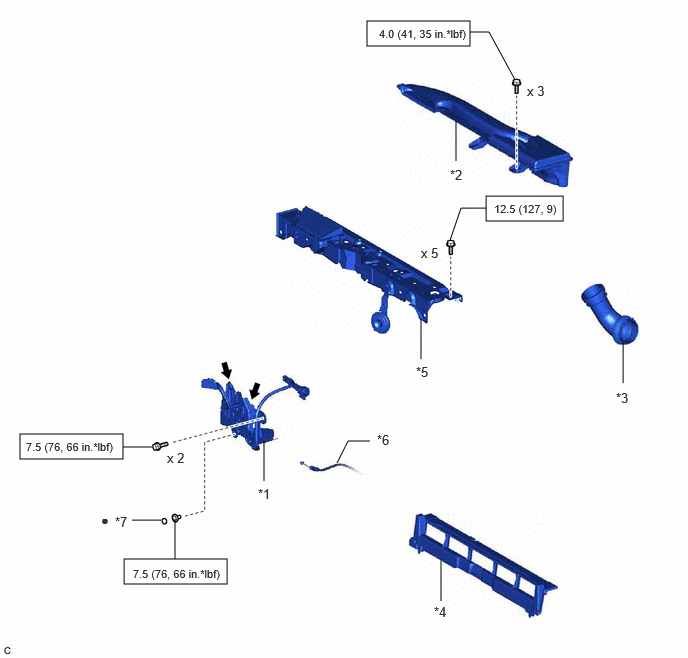

Fig 2: Cooling Fan Motor (W/ Cooling Fan ECU) Replacement Components With Torque Specifications (2 Of 4)

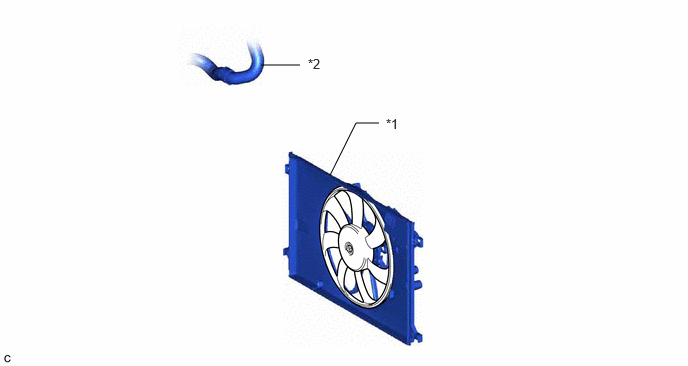

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | HOOD LOCK ASSEMBLY | *2 | INLET NO. 1 AIR CLEANER |
| *3 | INLET NO. 2 AIR CLEANER | *4 | NO. 2 RADIATOR AIR GUIDE |
| *5 | UPPER RADIATOR SUPPORT SUB-ASSEMBLY | *6 | HOOD LOCK CONTROL CABLE ASSEMBLY |
| *7 | HOOD LOCK NUT CAP | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FAN WITH MOTOR ASSEMBLY | *2 | NO. 2 RADIATOR HOSE |

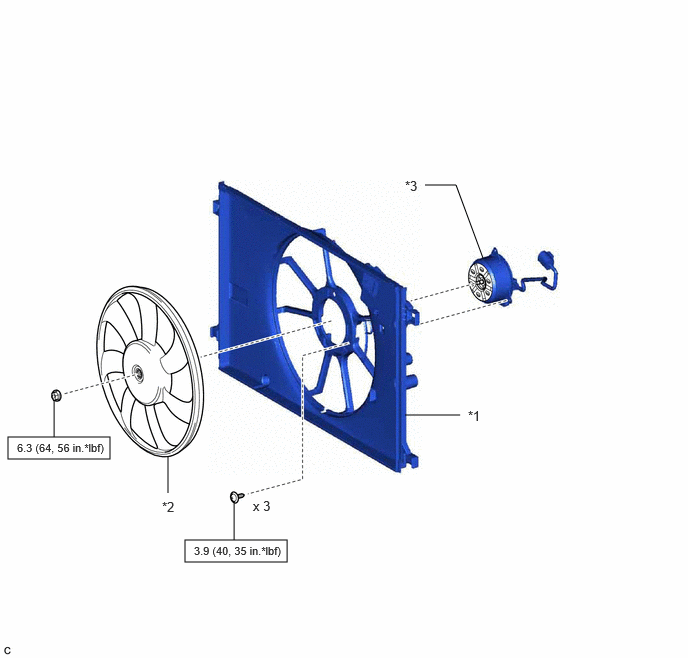

Fig 4: Cooling Fan Motor (W/ Cooling Fan ECU) Replacement Components With Torque Specifications (4 Of 4)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FAN SHROUD | *2 | FAN |
| *3 | COOLING FAN MOTOR | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
