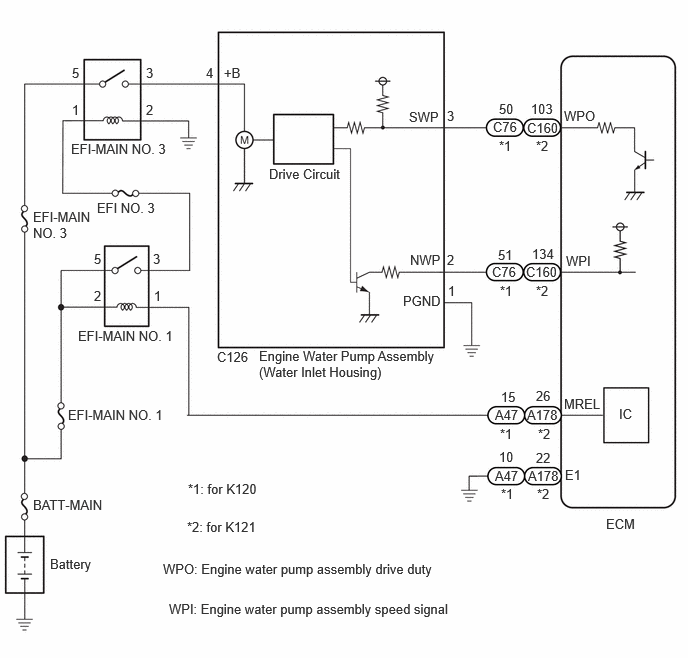

DTC P26CA-12: Engine Coolant Pump Circuit Short to Battery [03/2023 - 09/2024]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY1180854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
