System Diagram [01/2019 - 04/2020]

WARNING: This page is about a different variant/trim than selected.

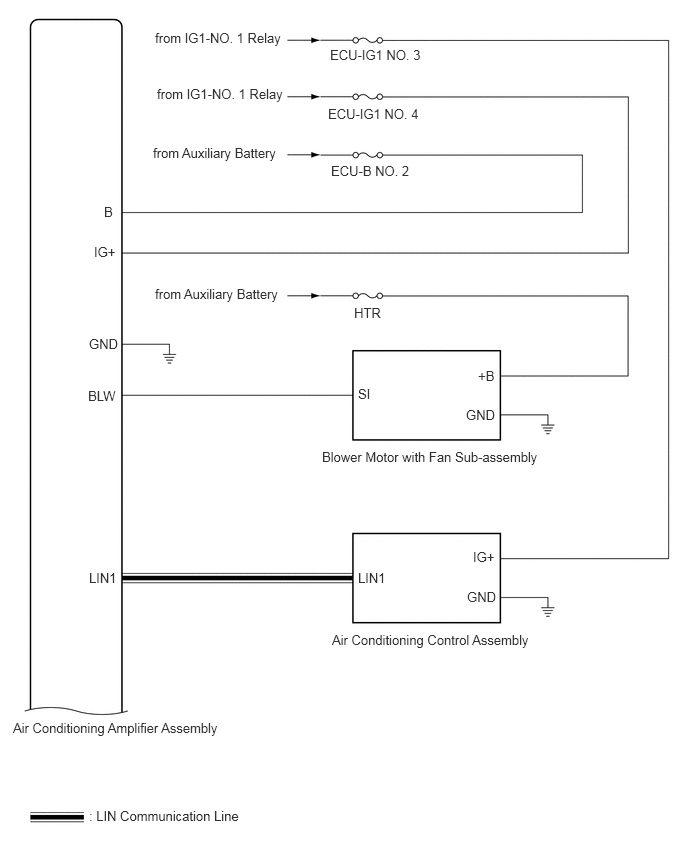

GTY884077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

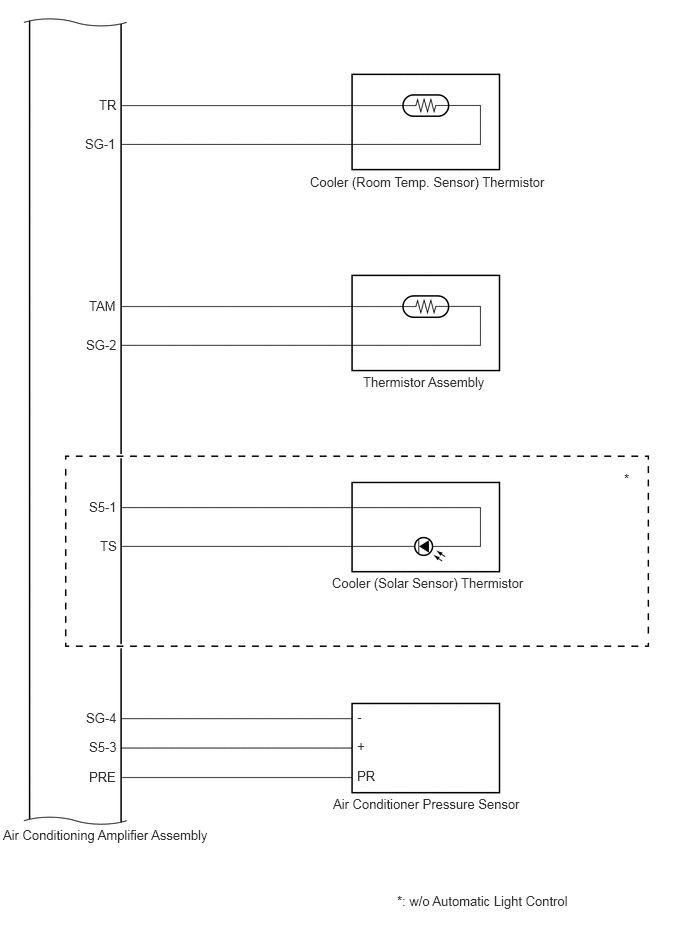

GTY890868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

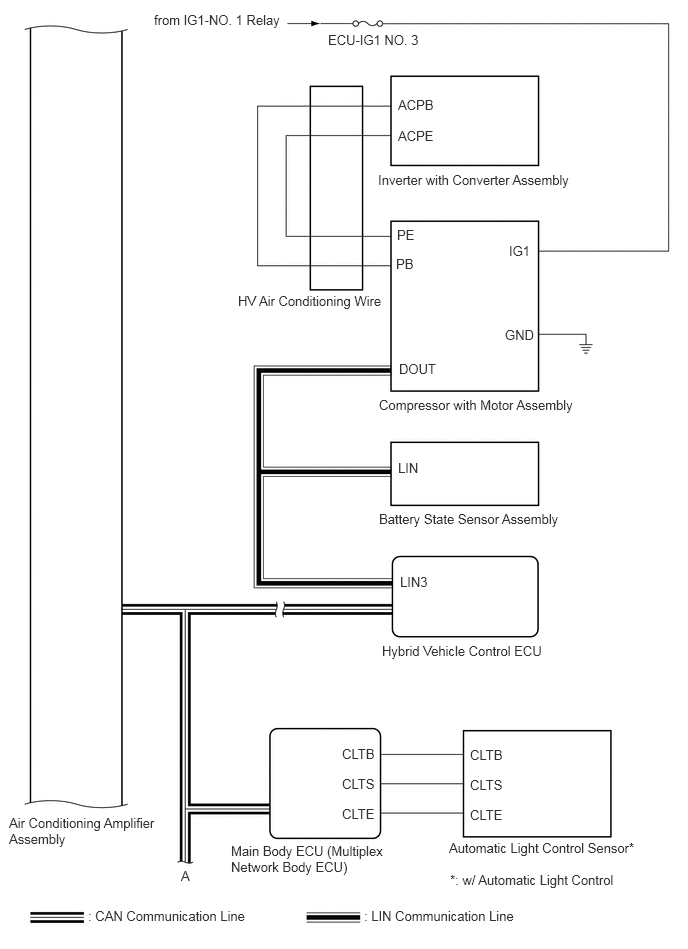

GTY925615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

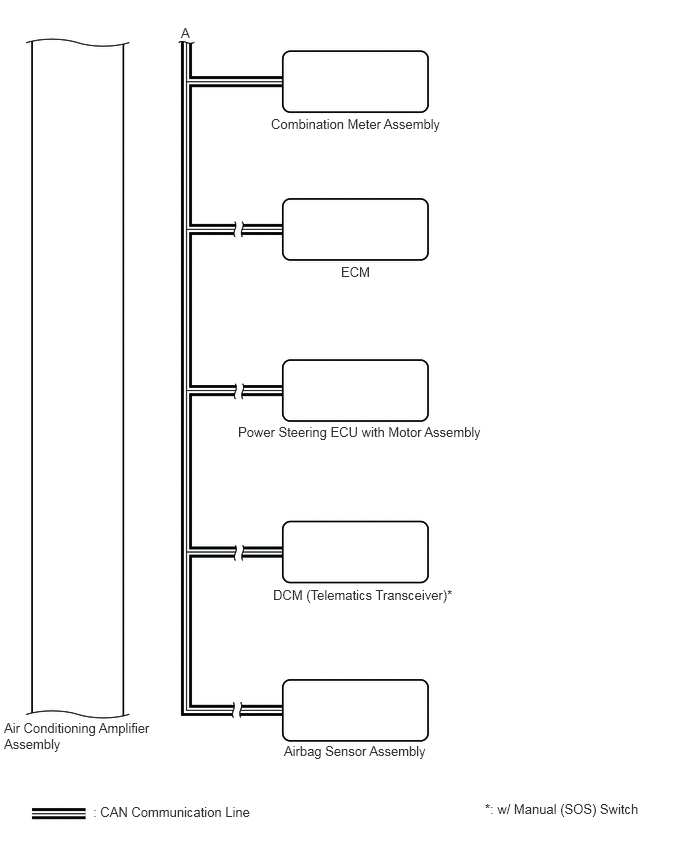

GTY857680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

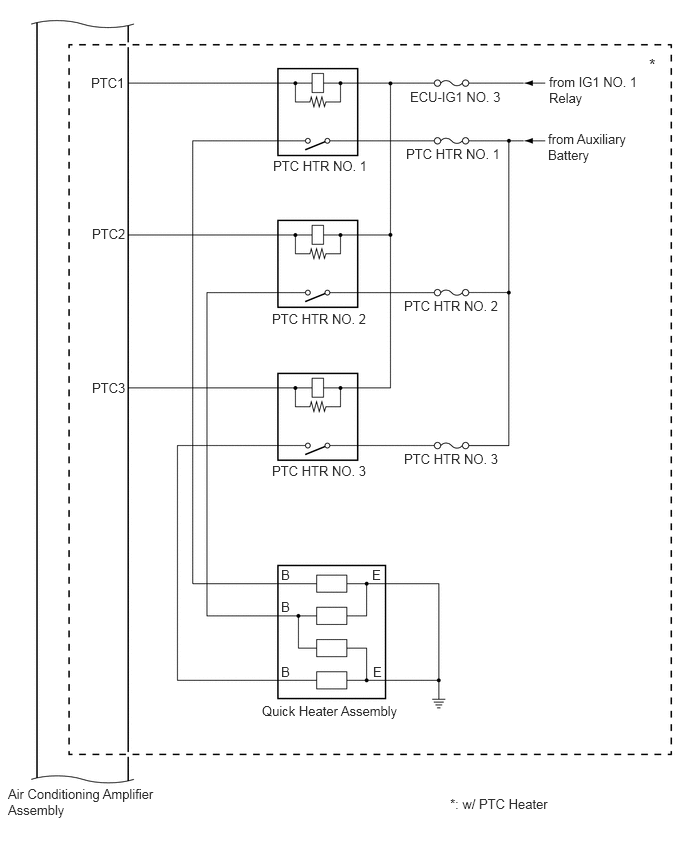

GTY872057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

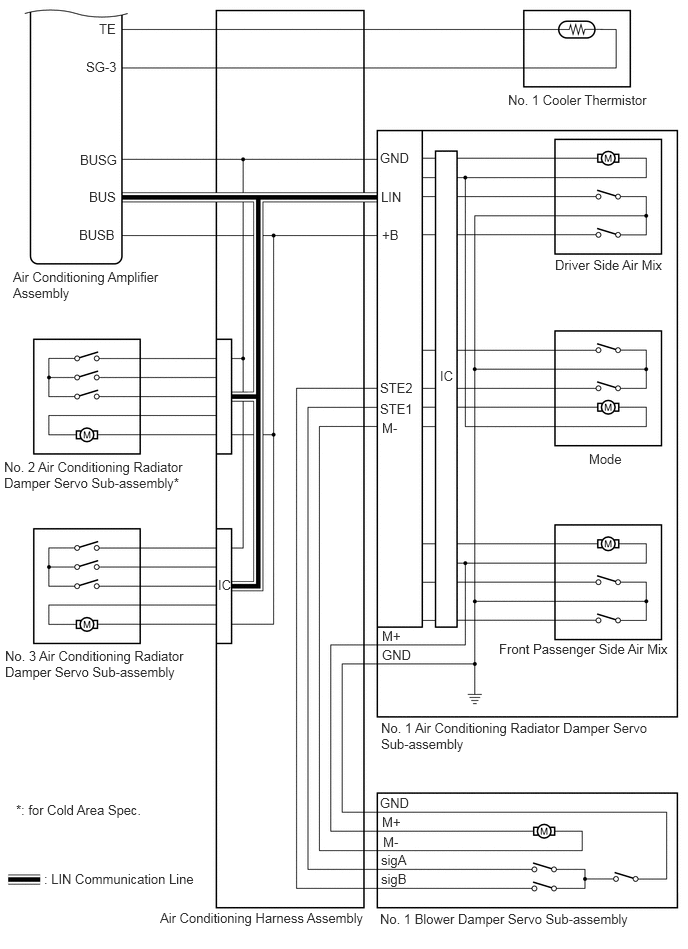

GTY854955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
