Removal [01/2019 - 04/2020]: Procedure

Refer to REMOVAL [01/2019 - 04/2020]

1. Using height adjustment attachments and plate lift attachments, place the engine assembly on a flat level surface.
   NOTE:

   • Using height adjustment attachments and plate lift attachments, keep the engine assembly horizontal.
   • To prevent the oil pan sub-assembly from deforming, do not place any attachments under the oil pan sub-assembly of the engine assembly.
   • Using an engine sling device and engine lift, secure the engine assembly before servicing.

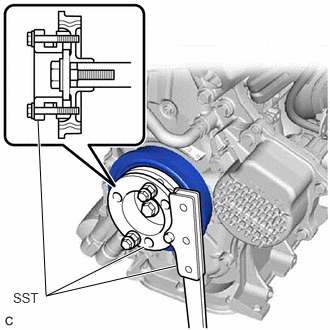

2. Using SST, hold the crankshaft pulley.
   • SST: 09213-58014
     1. 91551-80840
   • SST: 09330-00021

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

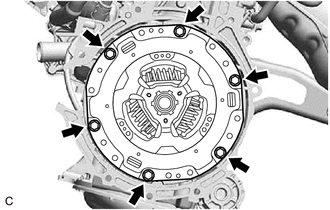

3. Remove the 6 bolts and transmission input damper assembly from the flywheel sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST, hold the crankshaft pulley.
   • SST: 09213-58014
     1. 91551-80840
   • SST: 09330-00021

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

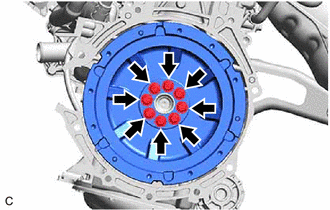

2. Remove the 8 bolts and flywheel sub-assembly from the crankshaft.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

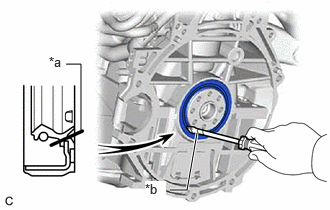

1. Using a knife, cut through the lip of the rear engine oil seal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Cut Position
   *b	Protective Tape

2. Using a screwdriver with its tip wrapped with protective tape, pry out the rear engine oil seal.
   NOTE:

   Be careful not to damage the crankshaft.
