System Diagram [01/2019 - 09/2022]

WARNING: This page is about a different variant/trim than selected.

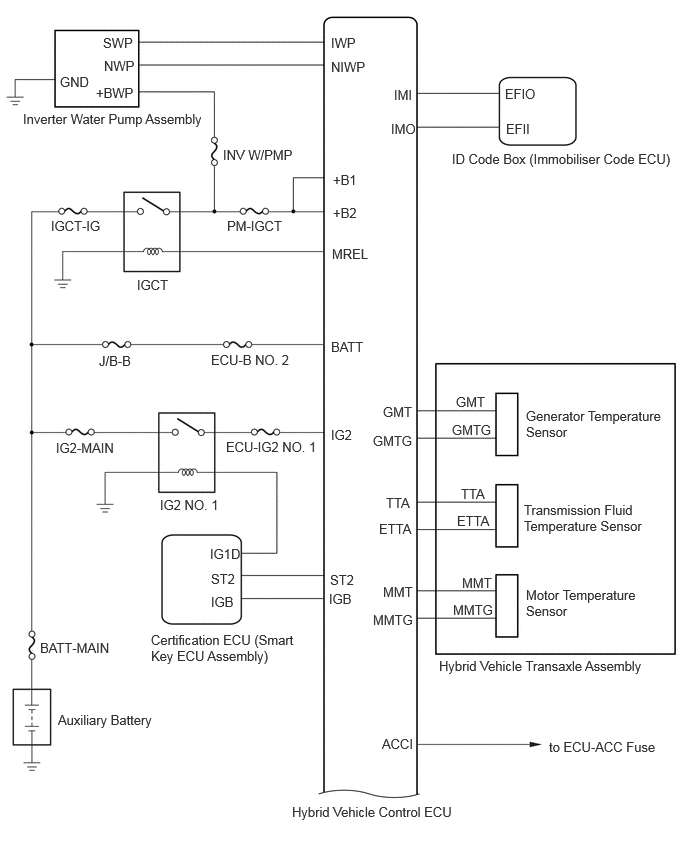

GTY942655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

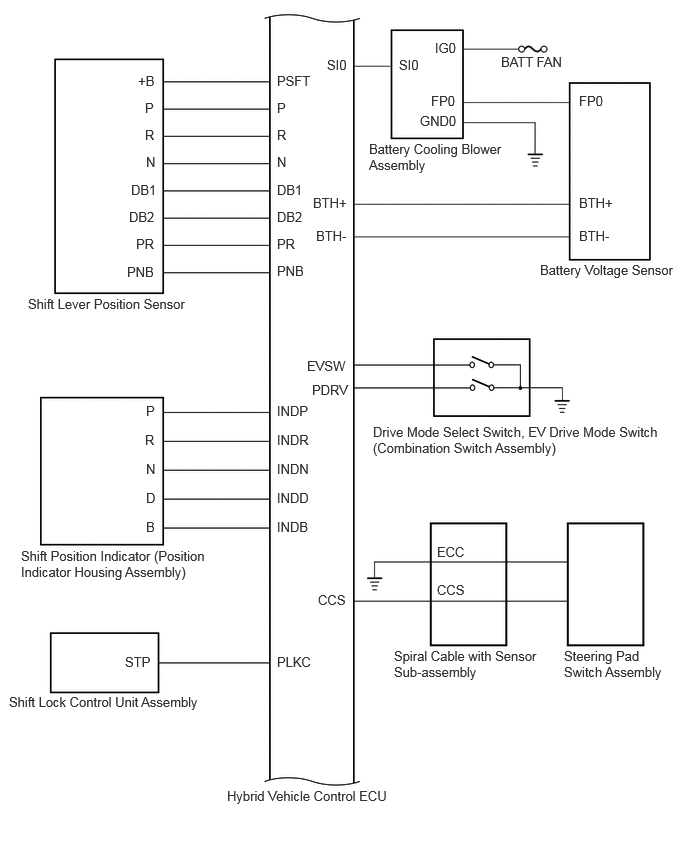

GTY844718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

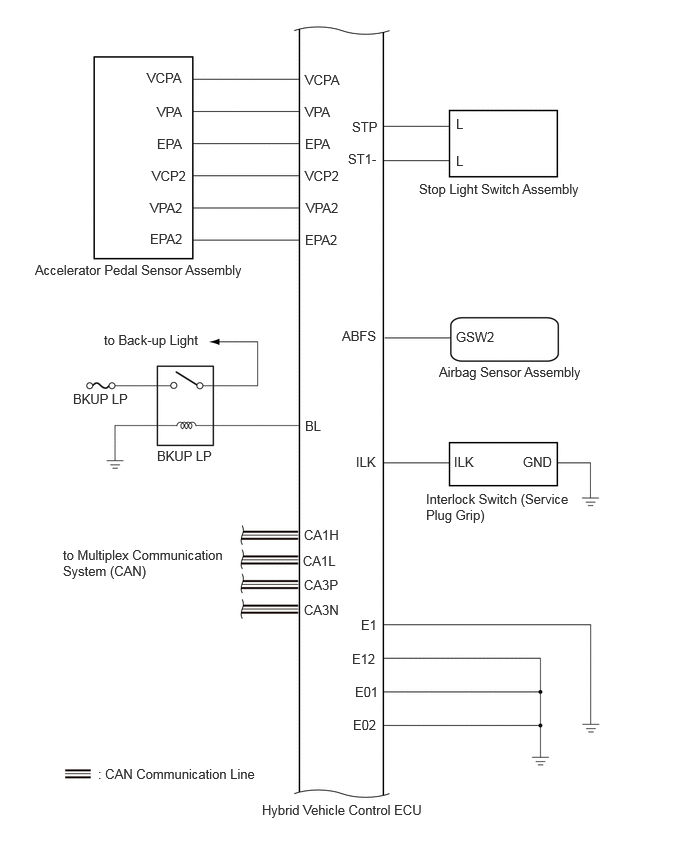

GTY901797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

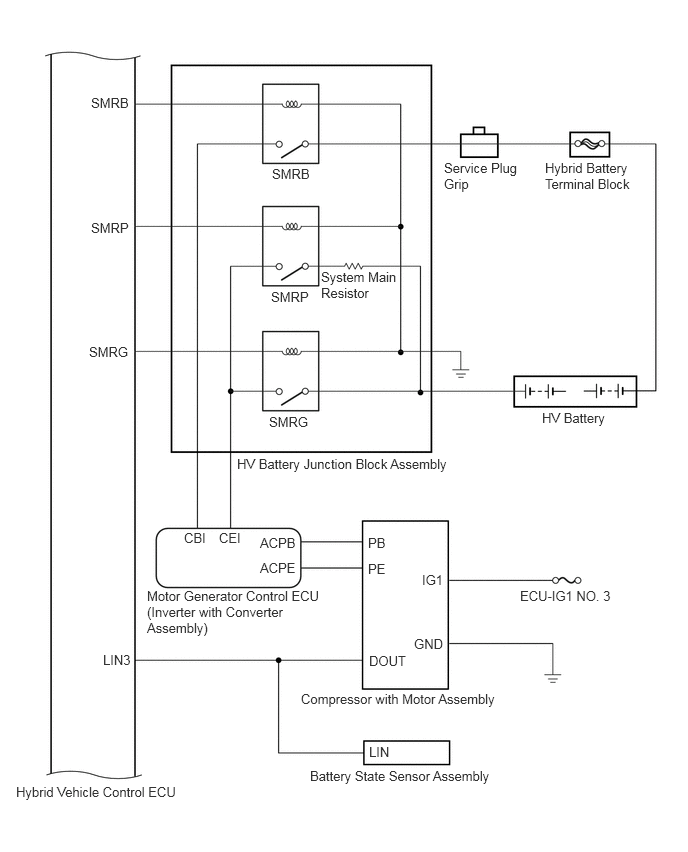

GTY892386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

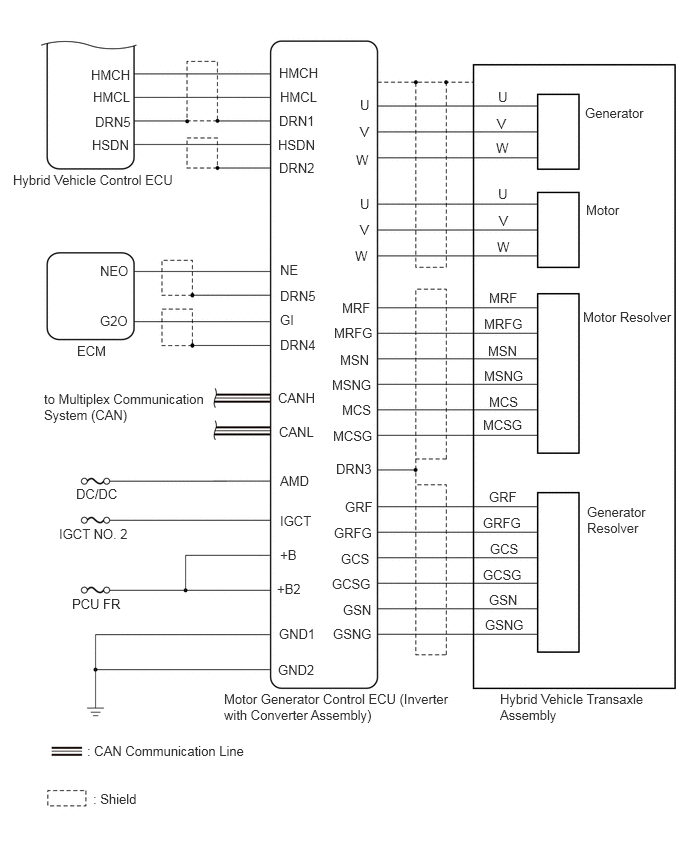

GTY910441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

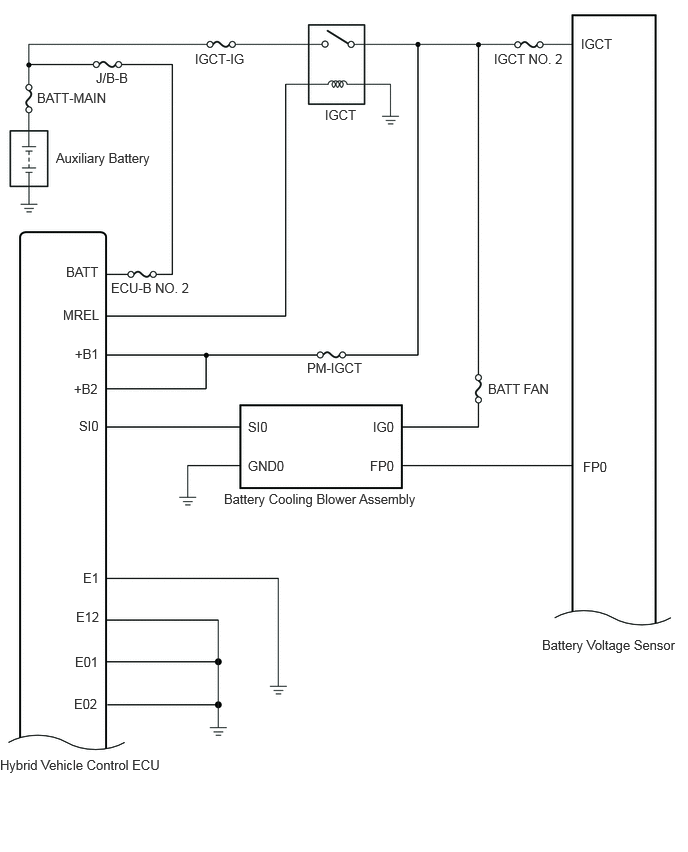

GTY941225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

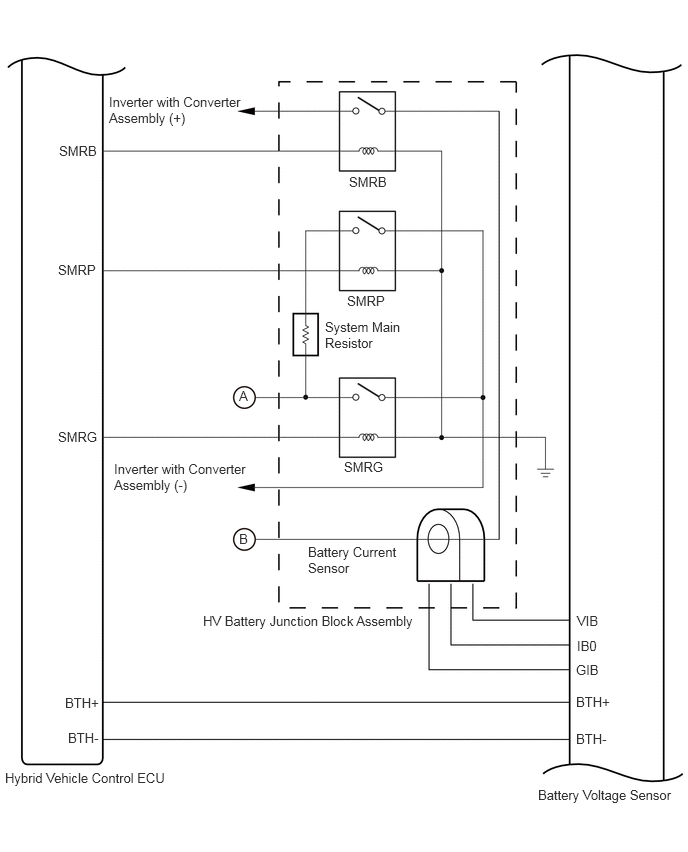

GTY924802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

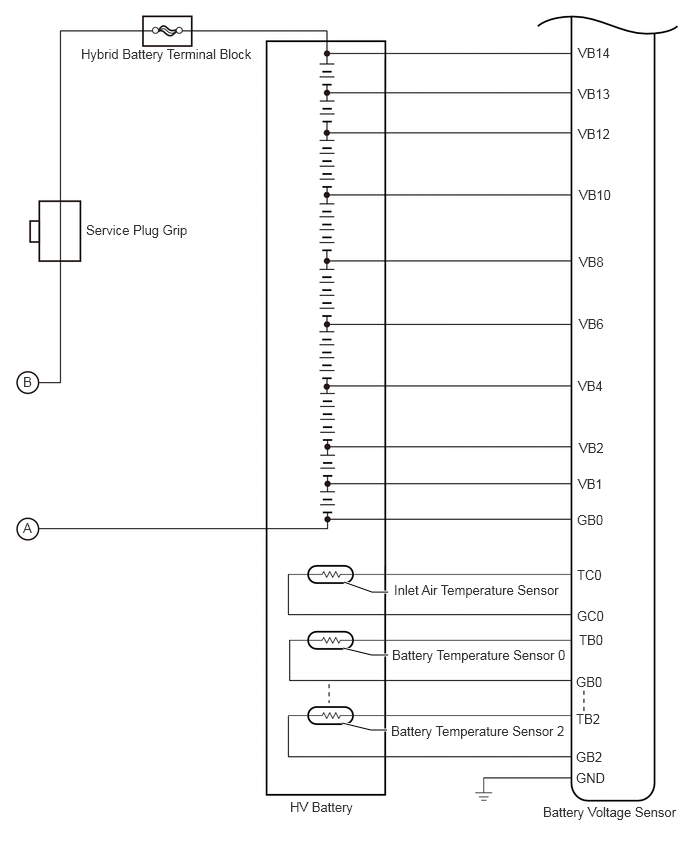

GTY919960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
