DTC Check / Clear [01/2019 - 09/2022]

WARNING: This page is about a different variant/trim than selected.

HINT:

DTCs which are stored in the skid control ECU (brake booster with master cylinder assembly) can be displayed on the Techstream. The Techstream can display the current, pending and permanent DTCs.
If a malfunction is detected during the current driving cycle, current and permanent DTCs are stored.
Current DTCs can be cleared by using the Techstream. However, permanent DTCs cannot be cleared using either of these two methods.
After clearing current DTCs using the Techstream, permanent DTCs can be cleared when the system is determined to be normal for the relevant DTCs and then the universal trip is performed. The driving pattern to obtain a normal judgment is described under the "Confirmation Driving Pattern" for the respective DTC.

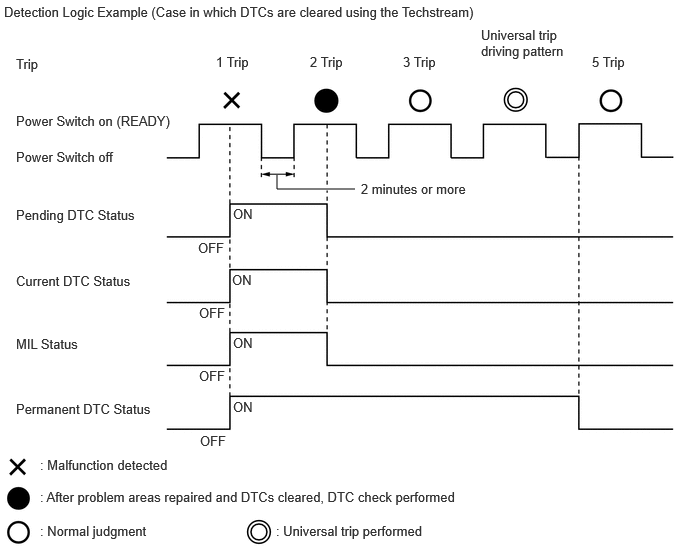

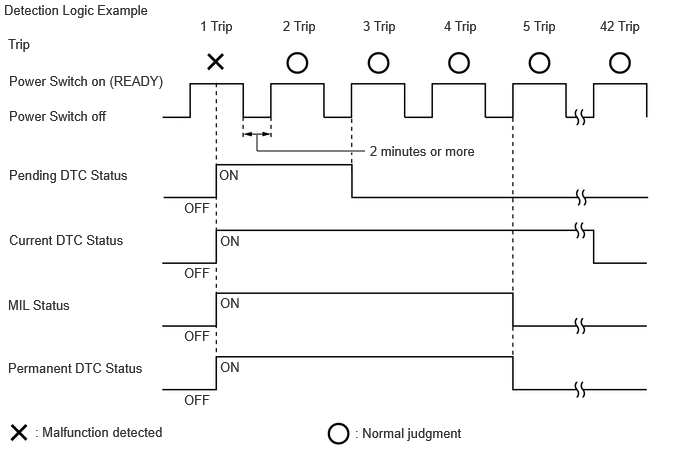

DETECTION LOGIC EXAMPLES

Pending DTC	Store condition	Malfunction detected
Pending DTC	Clear condition	Power switch turned on (IG) after normal judgment obtained in 1 driving cycle or DTCs cleared using Techstream
Current DTC	Store condition	Malfunction detected
Current DTC	Clear condition	No malfunctions in 40 driving cycles or DTCs cleared using Techstream
Permanent DTC	Store condition	Malfunction detected
Permanent DTC	Clear condition	Power switch turned on (IG) after normal judgment obtained in 3 consecutive driving cycles or After DTCs cleared using Techstream, normal judgment obtained and universal trip performed
MIL	ON	Malfunction detected
MIL	OFF	Power switch turned on (IG) after normal judgment obtained in 3 consecutive driving cycles or DTCs cleared using Techstream

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Obtaining a normal judgment and performing a universal trip driving pattern can be done in the same driving cycle or in different driving cycles.
Ensure to wait at least 2 minutes between each trip.

CHECK DTC
1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Chassis / ABS/VSC/TRAC / Trouble Codes.
  Chassis > ABS/VSC/TRAC > Trouble Codes
5. Check the DTC(s) and freeze frame data, and then write them down.
6. Check the details of the DTC(s).
  Refer to DIAGNOSTIC TROUBLE CODE CHART [01/2019 - 04/2020] , or refer to DIAGNOSTIC TROUBLE CODE CHART [04/2020 - 09/2022]
CLEAR DTC (PENDING AND CURRENT DTC)
1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Chassis / ABS/VSC/TRAC / Trouble Codes.
5. Clear the DTCs.
  Chassis > ABS/VSC/TRAC > Clear DTCs
CLEAR PERMANENT DTC
HINT:

Even if the following procedure is not performed, permanent DTCs are cleared by obtaining a normal judgment during 3 consecutive driving cycles.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Chassis / ABS/VSC/TRAC / Trouble Codes.
  Chassis > ABS/VSC/TRAC > Trouble Codes

  HINT:

  If "PERMANENT" in the top right of the screen displays "YES", permanent DTCs are stored.
5. Change the tab from "Enhanced" to "Generic".
6. Check if permanent DTCs are stored.
  HINT:

  If permanent DTCs are not output, it is not necessary to continue this procedure.
7. Clear the DTCs.
  Chassis > ABS/VSC/TRAC > Clear DTCs
8. Perform the respective confirmation driving patterns in order to obtain a normal judgment for the output DTCs.
  HINT:

  For the confirmation driving pattern, refer to the procedures for the relevant DTC.

  Refer to DIAGNOSTIC TROUBLE CODE CHART [01/2019 - 04/2020] , or refer to DIAGNOSTIC TROUBLE CODE CHART [04/2020 - 09/2022]
9. Perform the universal trip.
  WARNING:
  When performing a driving pattern, obey all speed limits and traffic laws.

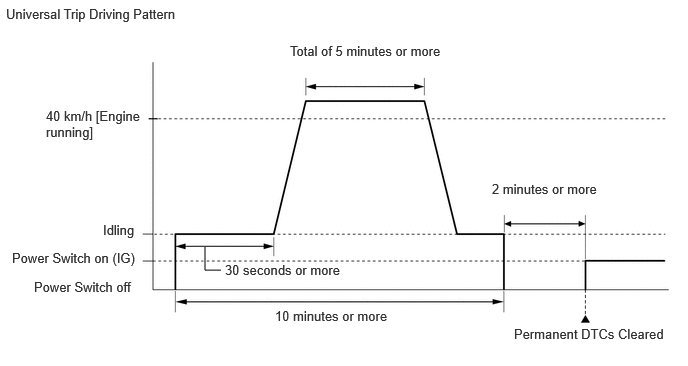

  1. Put the engine in Inspection Mode (Maintenance Mode).
    Refer to INSPECTION MODE PROCEDURE [06/2018 - ]
  2. Start the engine.
  3. Idle the engine for 30 seconds or more.
  4. With the engine running, drive the vehicle at 40 km/h (25 mph) or more for a total of 5 minutes or more.
    HINT:
    - It is possible to complete the drive pattern even if the vehicle decelerates to less than 40 km/h (25 mph) during the driving cycle provided that the vehicle is driven at 40 km/h (25 mph) or more for a total of 5 minutes.
    - If the engine stops, further depress the accelerator pedal to restart the engine.
  5. Allow 10 minutes or more to elapse from the time the engine is started.
10. Turn the power switch off.
11. Wait 2 minutes or more.
12. Turn the power switch on (IG).
13. Enter the following menus: Chassis / ABS/VSC/TRAC / Trouble Codes.
14. Check that the permanent DTCs have been cleared.
  Chassis > ABS/VSC/TRAC > Trouble Codes

  HINT:

  The permanent DTCs are cleared when the universal trip is completed.
