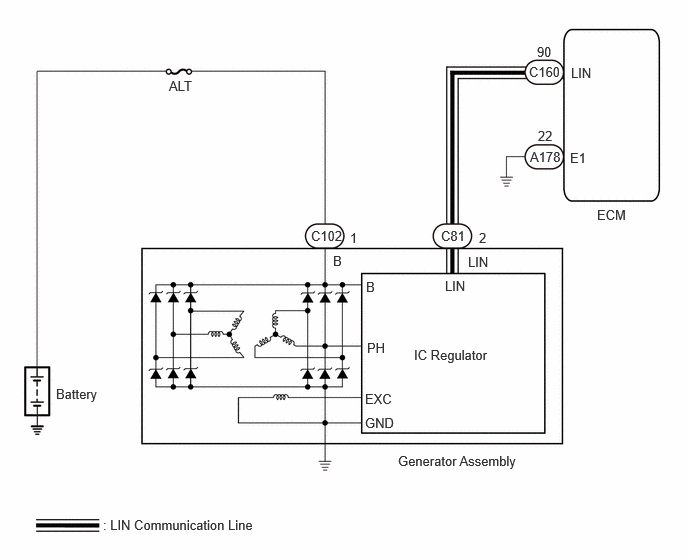

DTC P0620-49: Generator Control Circuit Internal Electronic Failure [09/2024 - ]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY1251462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
