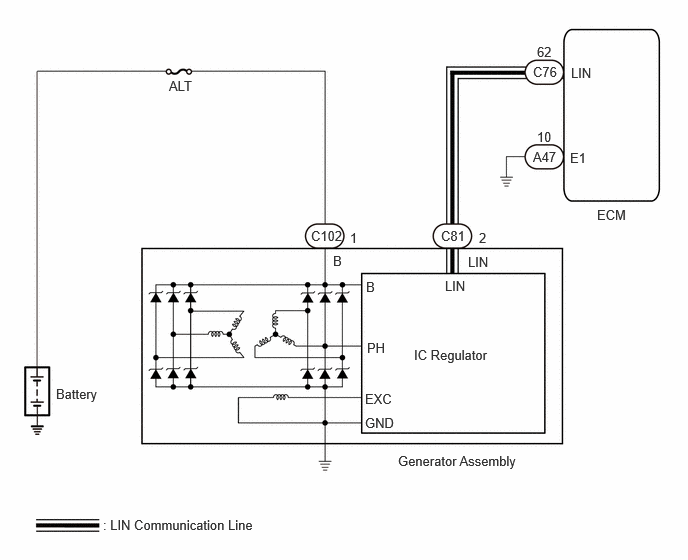

DTC P0620-49: Generator Control Circuit Internal Electronic Failure [09/2022 - 03/2023]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY1180952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
