Components [06/2018 - ]
WARNING: This page is about a different variant/trim than selected.

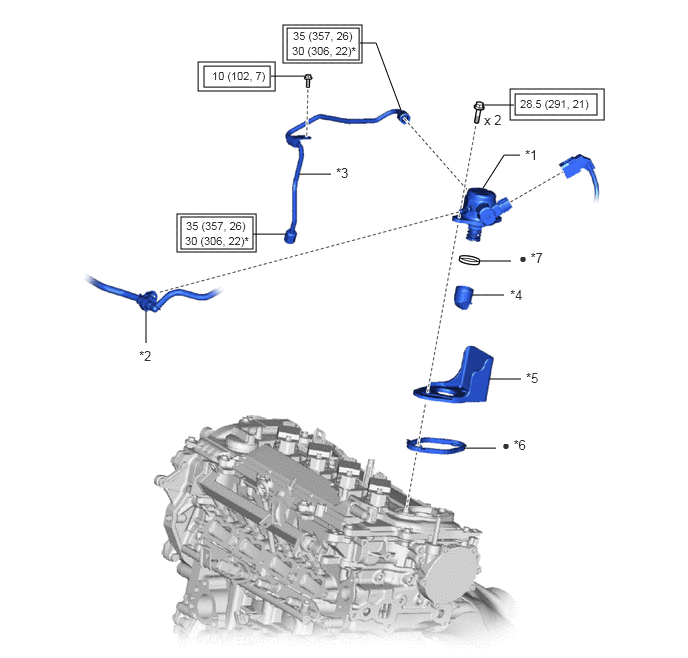

| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FUEL PUMP ASSEMBLY | *2 | FUEL TUBE SUB-ASSEMBLY |
| *3 | NO. 1 FUEL PIPE SUB-ASSEMBLY | *4 | FUEL PUMP LIFTER ASSEMBLY |
| *5 | FUEL PUMP FLANGE | *6 | FUEL PUMP SPACER GASKET |
| *7 | O-RING | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | * | For use with a union nut wrench | |
| • | Non-reusable part | - | - |
