System Diagram [09/2022 - 11/2022]

WARNING: This page is about a different variant/trim than selected.

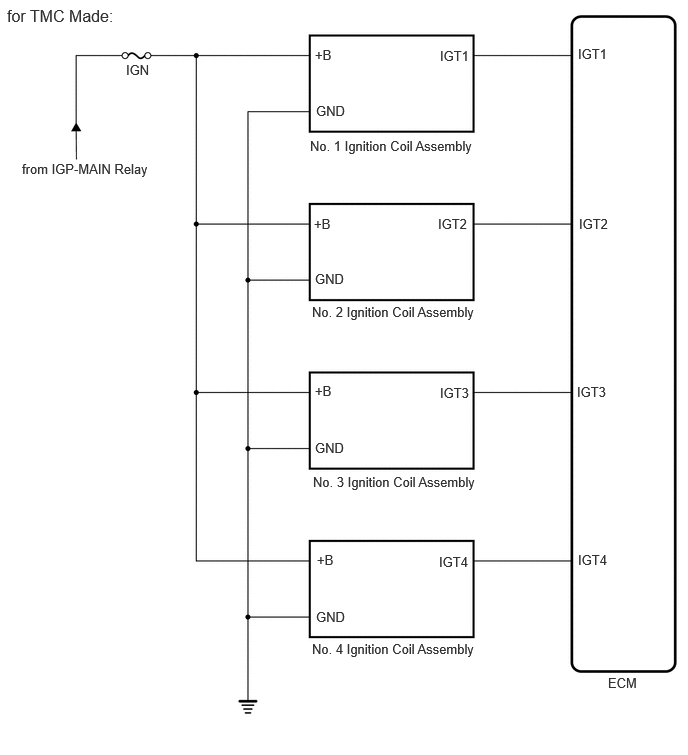

GTY1108571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

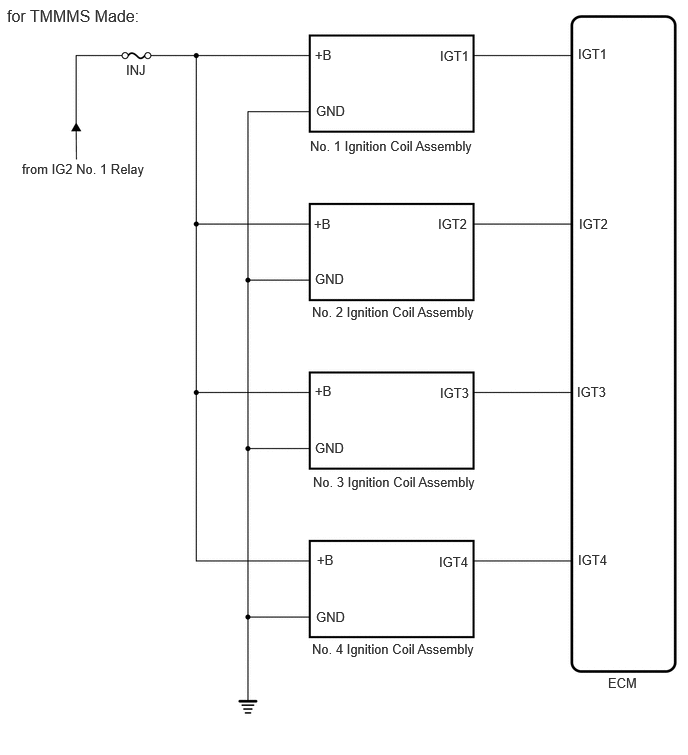

GTY1104200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
