Ignition Circuit [09/2022 - 11/2022]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

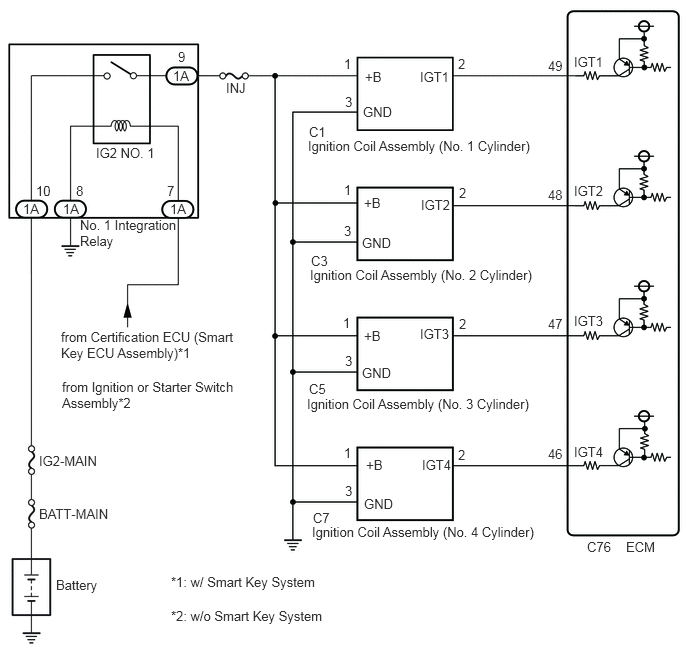

for TMMMS Made

GTY934029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

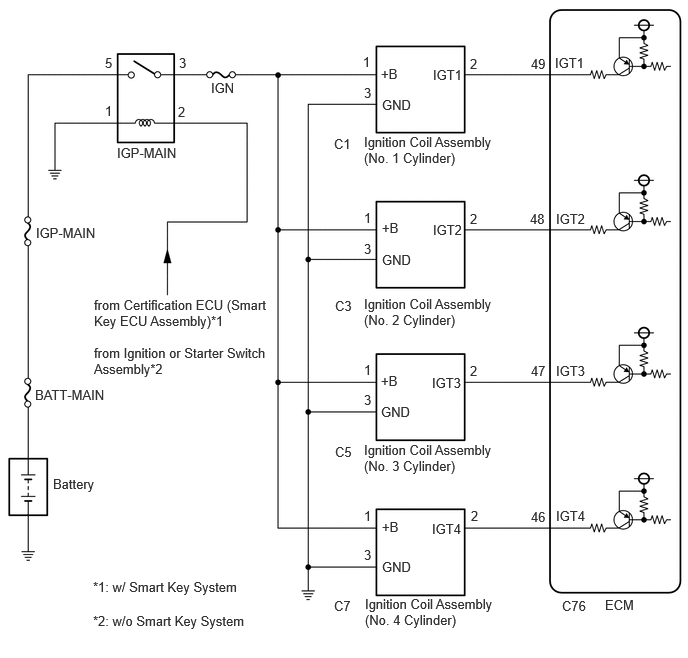

for TMC Made

GTY1108809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
