Section 29 (Engine Control System (M20A-FKS) - Circuit Tests (5 Of 6))
>>
SFI System
>>
Ignition Circuit [03/2023 - 09/2024]
>>

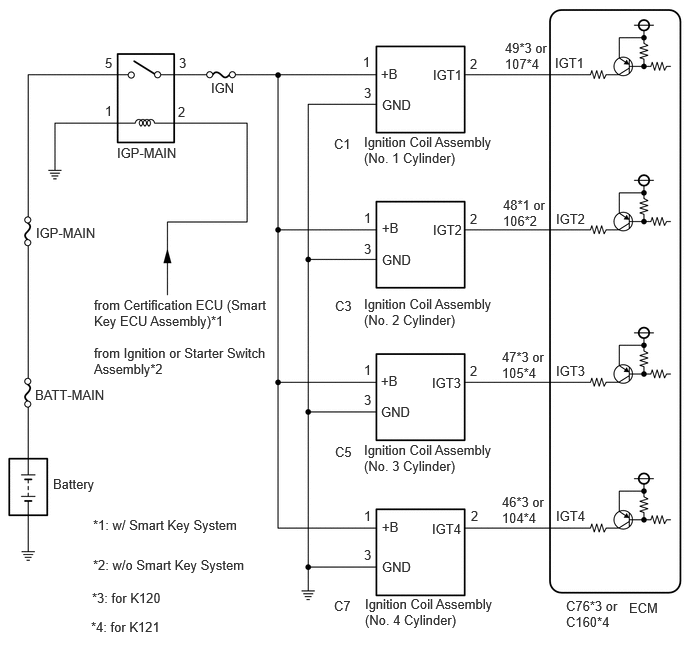

Wiring Diagram
Ignition Circuit [03/2023 - 09/2024]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
