Parts Location [09/2022 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

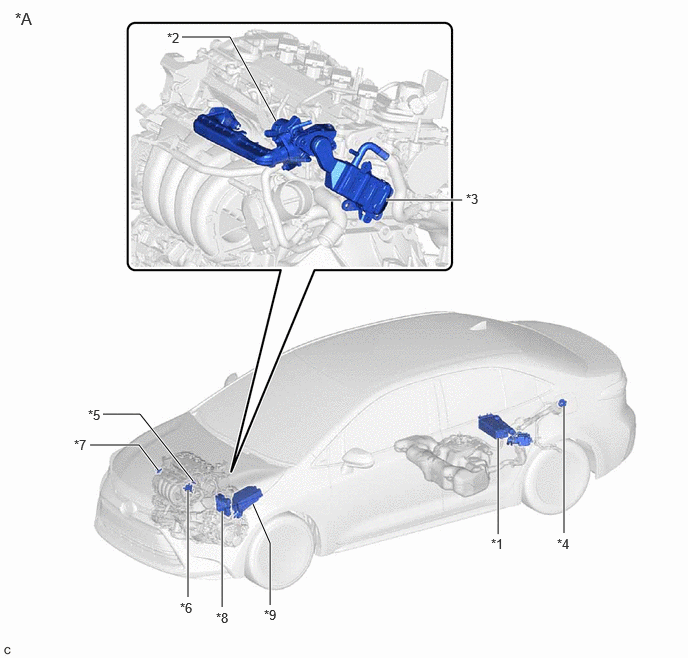

| *A |
for Double Wishborne Suspension Type |
- |
- |
| *1 |
CANISTER (CHARCOAL CANISTER ASSEMBLY) |
*2 |
EGR VALVE ASSEMBLY |
| *3 |
EGR COOLER ASSEMBLY |
*4 |
FUEL TANK CAP ASSEMBLY |
| *5 |
PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) |
*6 |
PURGE VALVE (PURGE VSV) |
| *7 |
E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR) |
*8 |
ECM |
| *9 |
NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

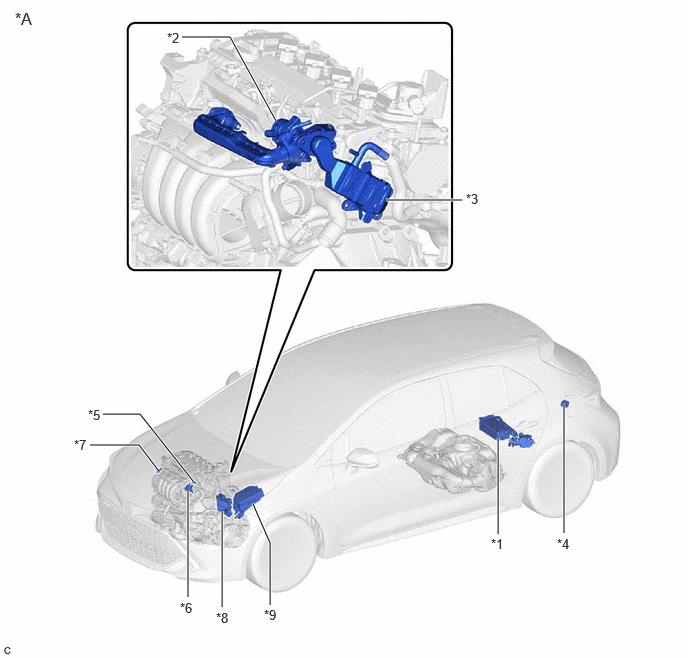

| *A |
for Torsion Beam Suspension Type |
- |
- |
| *1 |
CANISTER (CHARCOAL CANISTER ASSEMBLY) |
*2 |
EGR VALVE ASSEMBLY |
| *3 |
EGR COOLER ASSEMBLY |
*4 |
FUEL TANK CAP ASSEMBLY |
| *5 |
PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) |
*6 |
PURGE VALVE (PURGE VSV) |
| *7 |
E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR) |
*8 |
ECM |
| *9 |
NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY |
- |
- |
