Parts Location [06/2018 - 09/2022]: Illustration
WARNING: This page is about a different variant/trim than selected.

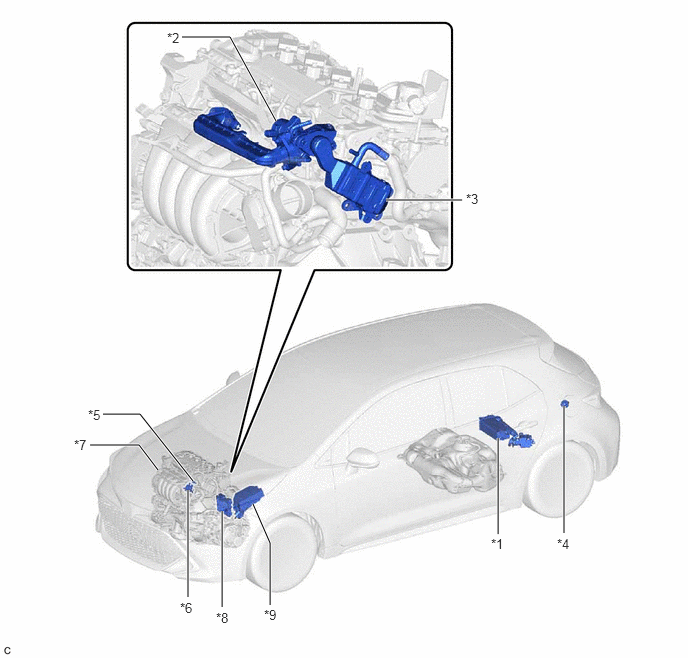

| *1 | CANISTER (CHARCOAL CANISTER ASSEMBLY) | *2 | EGR VALVE ASSEMBLY |
| *3 | EGR COOLER ASSEMBLY | *4 | FUEL TANK CAP ASSEMBLY |
| *5 | PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) | *6 | PURGE VALVE (PURGE VSV) |
| *7 | E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR) | *8 | ECM |
| *9 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - EFI-MAIN RELAY - EFI NO. 2 FUSE |
- | - |
