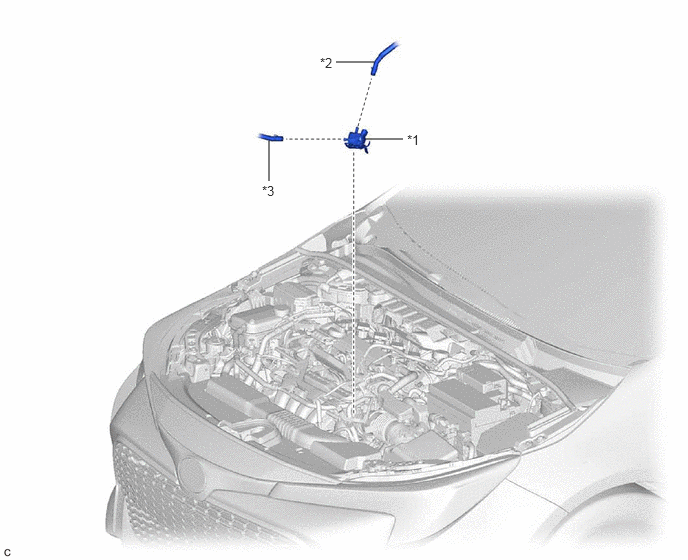

Components [06/2021 - ]
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
PURGE VALVE (PURGE VSV) |
*2 |
NO. 1 FUEL VAPOR FEED HOSE |
| *3 |
NO. 2 FUEL VAPOR FEED HOSE |
- |
- |
