Removal [06/2018 - 09/2022]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [06/2018 - 01/2019] , or refer to REMOVAL [01/2019 - 09/2022]

  2. REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

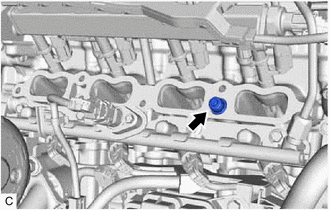

    1. Remove the PCV valve (ventilation valve sub-assembly) from the cylinder head sub-assembly.
      GTY919850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
