Components [06/2018 - ]

WARNING: This page is about a different variant/trim than selected.

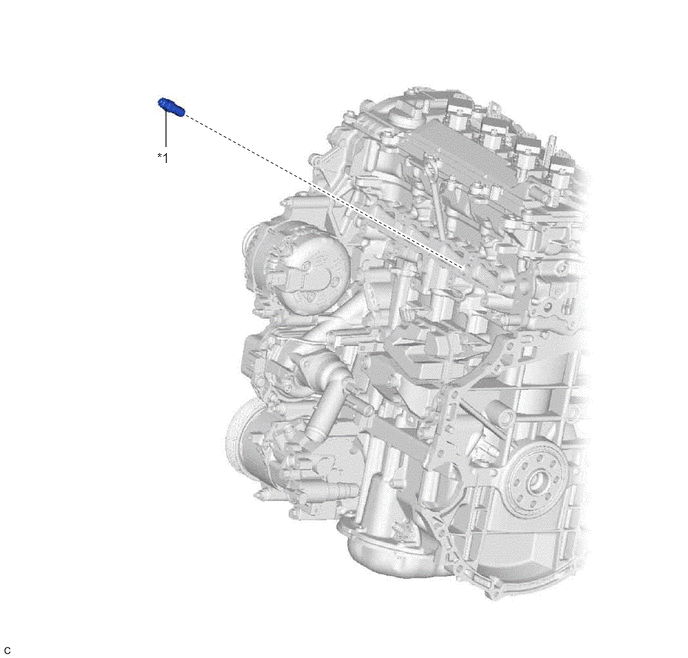

Fig 1: PCV Valve Replacement Components
GTY918673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) - -
