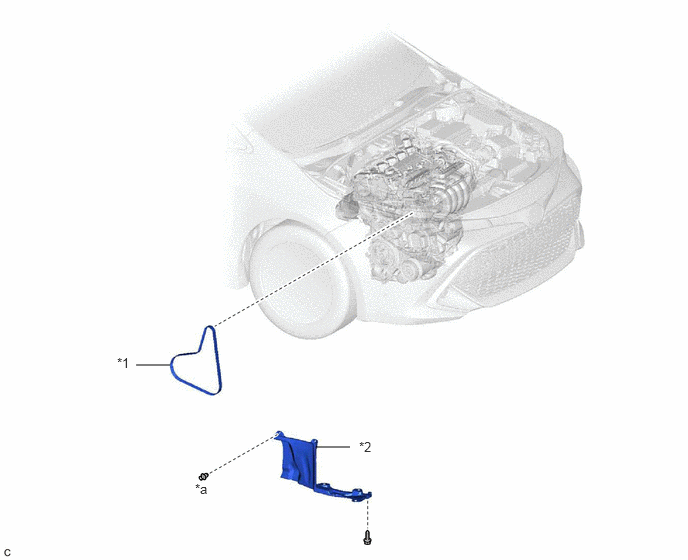

Components [01/2019 - ]
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |
| *1 |
V-RIBBED BELT |
*2 |
REAR ENGINE UNDER COVER RH |
| *a |
Type A: x 7
Type B: x 8 |
- |
- |
