Components [09/2019 - ]
WARNING: This page is about a different variant/trim than selected.

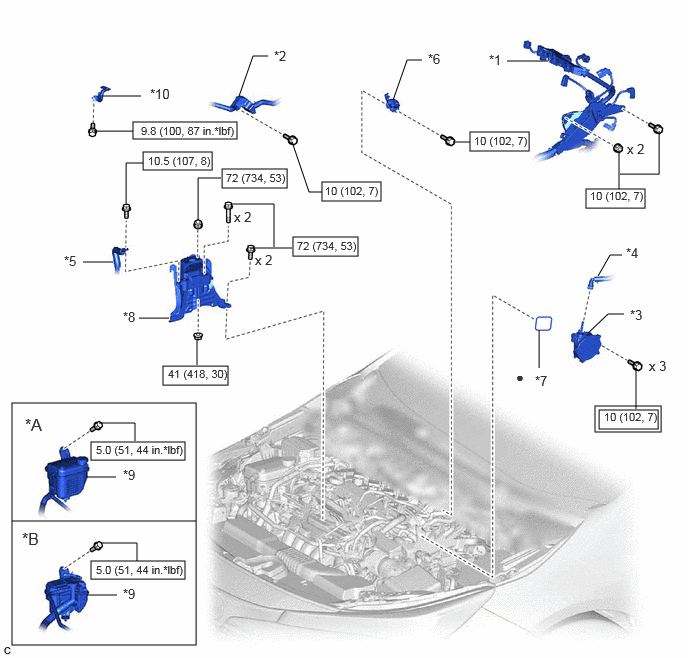

| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Fully Sealed Type | *B | for Non-Fully Sealed Type |
| *1 | ENGINE WIRE | *2 | VACUUM SURGE TANK |
| *3 | VACUUM PUMP ASSEMBLY | *4 | NO. 1 VACUUM HOSE CONNECTOR |
| *5 | NO. 2 EARTH WIRE | *6 | NO. 3 WATER HOSE CLAMP BRACKET |
| *7 | NO. 1 VACUUM PUMP O-RING | *8 | ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH |
| *9 | RESERVE SEALED TANK | *10 | NO. 1 COOLER REFRIGERANT HOSE BRACKET |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | IGNITION COIL ASSEMBLY | *2 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY |
| *3 | CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY | *4 | CYLINDER HEAD COVER SUB-ASSEMBLY |
| *5 | SPARK PLUG TUBE GASKET | *6 | CAMSHAFT POSITION SENSOR (for Intake Side) |
| *7 | CAMSHAFT POSITION SENSOR (for Exhaust Side) | *8 | CYLINDER HEAD COVER GASKET |
| *9 | CAM TIMING CONTROL MOTOR O-RING | *10 | O-RING |
| *11 | CAMSHAFT BEARING CAP OIL HOLE GASKET | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | * | Precoated part |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *1 | INTAKE CAMSHAFT SUB-ASSEMBLY | *2 | EXHAUST CAMSHAFT SUB-ASSEMBLY |
| *3 | CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY) | *4 | FUEL PUMP LIFTER GUIDE |
| *5 | CAMSHAFT TIMING GEAR ASSEMBLY | *6 | CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY |
| *7 | NO. 1 CAMSHAFT BEARING CAP | *8 | NO. 2 CAMSHAFT BEARING CAP |
| *9 | NO. 3 CAMSHAFT BEARING CAP | *10 | NO. 4 CAMSHAFT BEARING CAP |
| *11 | STRAIGHT SCREW PLUG | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | Adhesive 1324 | ||
| * | Precoated part | - | - |
