Components [09/2024 - ]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Generator (For Valeo Made) Replacement Components With Torque Specifications [09/2024 - ] (1 Of 2)

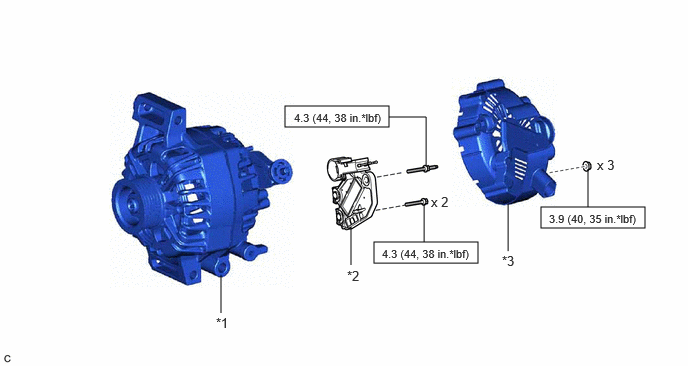

Fig 2: Generator (For Valeo Made) Replacement Components With Torque Specifications [09/2024 - ] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | GENERATOR ASSEMBLY | *2 | GENERATOR REGULATOR ASSEMBLY |
| *3 | GENERATOR REAR END COVER | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
