Components [03/2019 - 11/2022]
WARNING: This page is about a different variant/trim than selected.

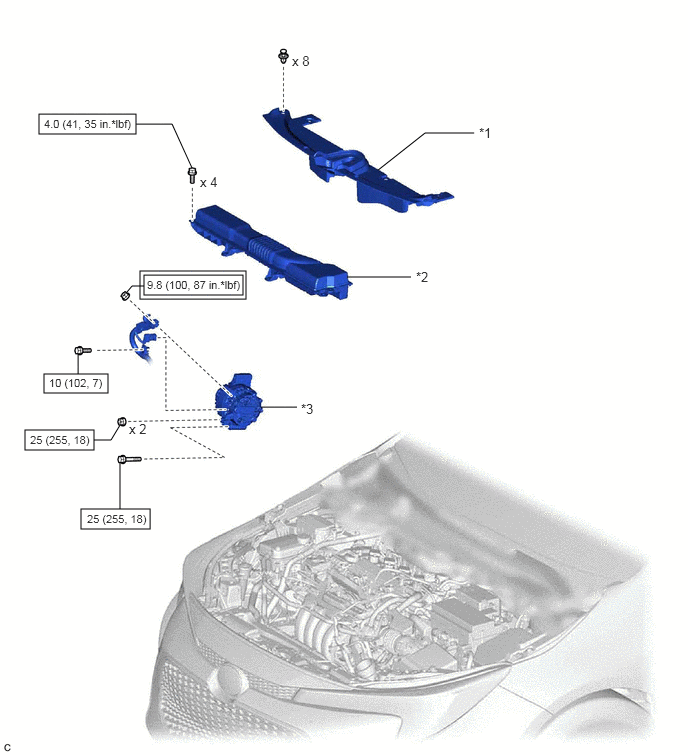

Fig 1: Generator (For Valeo Made) Replacement Components With Torque Specifications [03/2019 - 11/2022] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | RADIATOR SUPPORT OPENING COVER | *2 | INLET NO. 1 AIR CLEANER |
| *3 | GENERATOR ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |

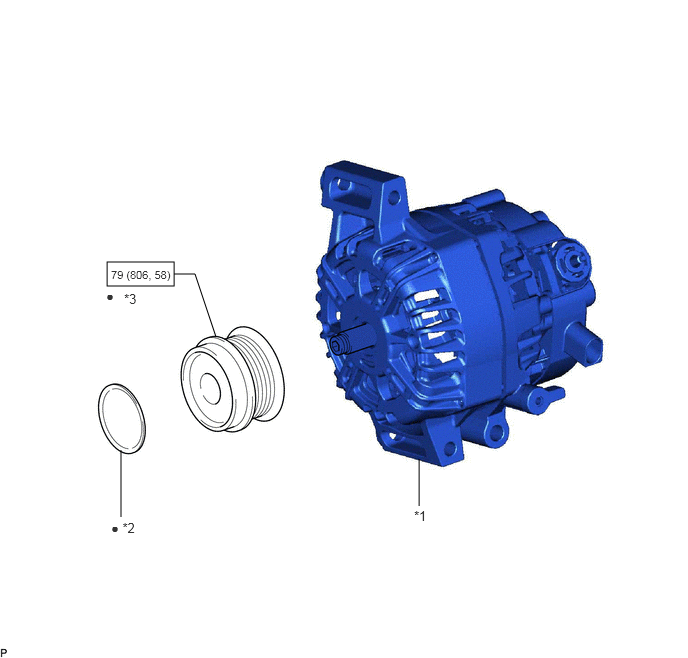

Fig 2: Generator (For Valeo Made) Replacement Components With Torque Specifications [03/2019 - 11/2022] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | GENERATOR ASSEMBLY | *2 | GENERATOR PULLEY CAP |
| *3 | GENERATOR PULLEY WITH CLUTCH | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
