Parts Location [06/2018 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.
GTY887963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ECM

*1

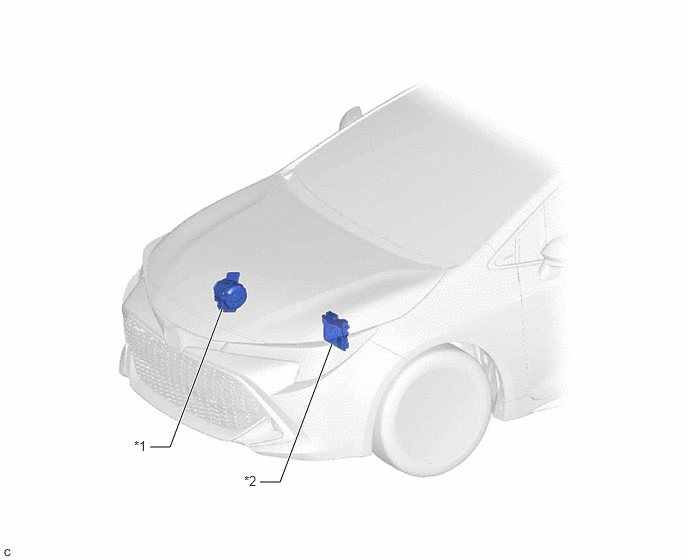

*1 GENERATOR ASSEMBLY *2 ECM


GTY936266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

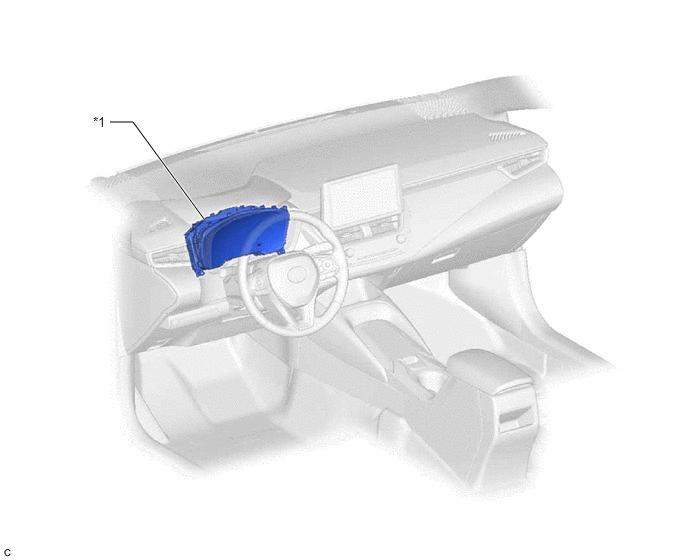

*1 COMBINATION METER ASSEMBLY - -
