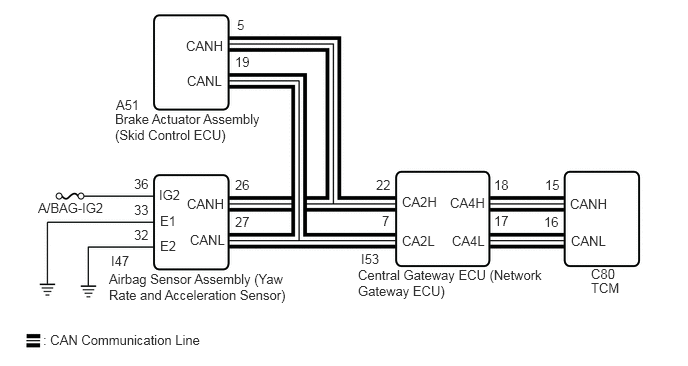

DTC P1585-04: Acceleration Sensor Circuit System Internal Failure [06/2018 - 03/2019]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY940023Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
