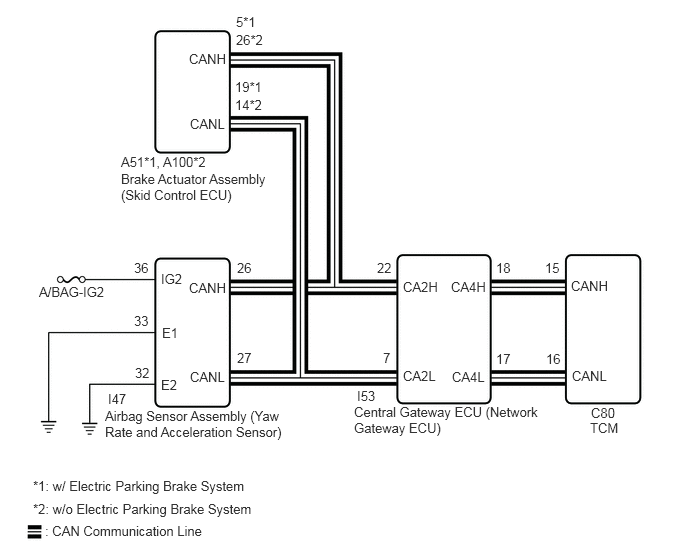

DTC P1585-04: Acceleration Sensor Circuit System Internal Failure [03/2019 - 11/2022]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY890011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
