Components [06/2018 - 11/2022]
WARNING: This page is about a different variant/trim than selected.

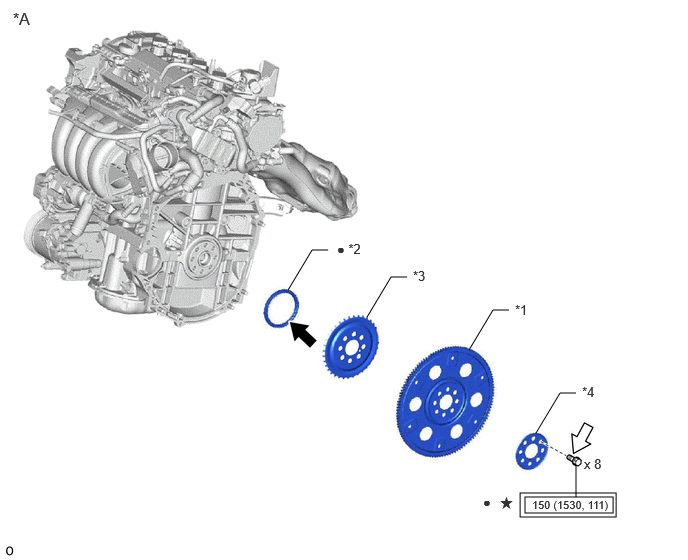

Fig 1: Rear Crankshaft Oil Seal Replacement Components With Torque Specifications [06/2018 - 11/2022] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for CVT | - | - |
| *1 | DRIVE PLATE AND RING GEAR SUB-ASSEMBLY | *2 | REAR ENGINE OIL SEAL |
| *3 | NO. 1 CRANKSHAFT POSITION SENSOR PLATE | *4 | REAR DRIVE PLATE SPACER |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| MP grease | Adhesive 1324 | ||
| * | Precoated part | - | - |

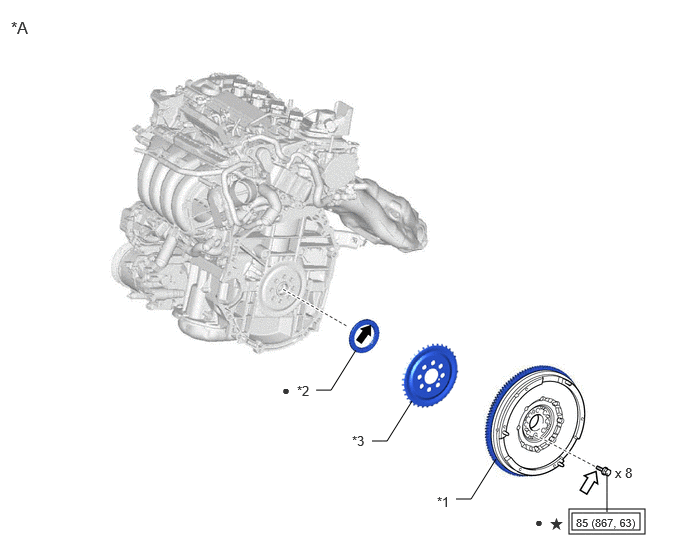

Fig 2: Rear Crankshaft Oil Seal Replacement Components With Torque Specifications [06/2018 - 11/2022] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Manual Transaxle | - | - |
| *1 | FLYWHEEL SUB-ASSEMBLY | *2 | REAR ENGINE OIL SEAL |
| *3 | NO. 1 CRANKSHAFT POSITION SENSOR PLATE | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| MP grease | Adhesive 1324 | ||
| * | Precoated part | - | - |
