Removal [03/2019 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

REMOVE FRONT WHEEL RH
Refer to REMOVAL [03/2019 - 09/2022] , or refer to REMOVAL [09/2022 - ]
REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 9 [03/2019 - 09/2019] , or refer to PROCEDURE - Step 9 [09/2019 - 06/2021] , or refer to PROCEDURE - Step 9 [06/2021 - 09/2022] , or refer to PROCEDURE - Step 9 [09/2022 - 11/2022] , or refer to PROCEDURE - Step 9 [11/2022 - 03/2023] , or refer to PROCEDURE - Step 9 [03/2023 - 09/2024] , or refer to PROCEDURE - Step 9 [09/2024 - ]
REMOVE REAR ENGINE UNDER COVER RH
Refer to PROCEDURE - Step 11 [03/2019 - 09/2019] , or refer to PROCEDURE - Step 11 [09/2019 - 06/2021] , or refer to PROCEDURE - Step 11 [06/2021 - 09/2022] , or refer to PROCEDURE - Step 11 [09/2022 - 11/2022] , or refer to PROCEDURE - Step 11 [11/2022 - 03/2023] , or refer to PROCEDURE - Step 11 [03/2023 - 09/2024] , or refer to PROCEDURE - Step 11 [09/2024 - ]
REMOVE REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH
Refer to PROCEDURE - Step 11 [01/2019 - 09/2022] , or refer to PROCEDURE - Step 11 [09/2022 - 11/2022] , or refer to PROCEDURE - Step 18 [11/2022 - 09/2024] , or refer to PROCEDURE - Step 20 [09/2024 - ]
REMOVE V-RIBBED BELT
Refer to PROCEDURE - Step 2
REMOVE CRANKSHAFT PULLEY ASSEMBLY
Refer to PROCEDURE - Step 15 [06/2018 - 03/2023] , or refer to PROCEDURE - Step 15 [03/2023 - 09/2024] , or refer to PROCEDURE - Step 15 [09/2024 - ]

REMOVE TIMING CHAIN COVER OIL SEAL

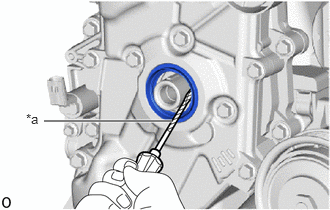

Using a screwdriver, pry out the timing chain cover oil seal.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape

NOTE:

Do not damage the surface of the timing chain cover oil seal press fit hole or the crankshaft.

HINT:

Tape the screwdriver tip before use.
