Components [01/2019 - 03/2019]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Front Crankshaft Oil Seal Replacement Components With Torque Specifications [01/2019 - 03/2019] (1 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR ENGINE UNDER COVER RH | - | - |
| *a | Type A: x 4 Type B: x 5 |
- | - |

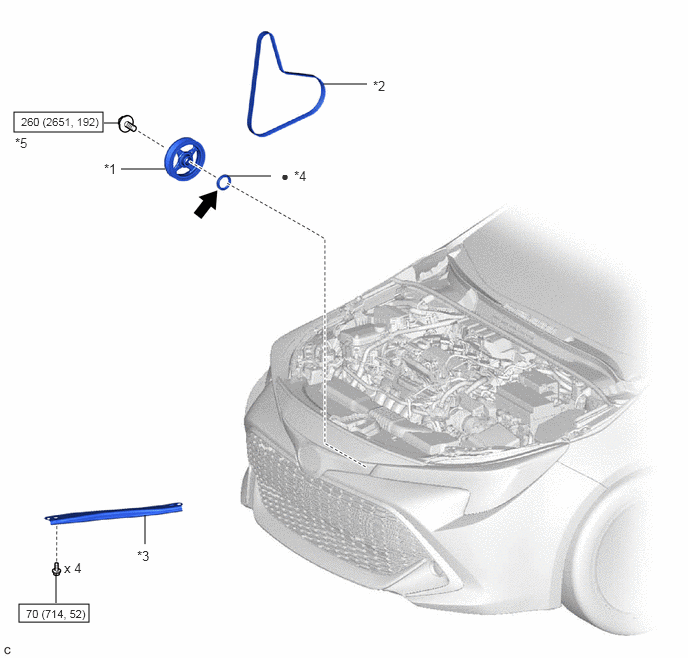

Fig 3: Front Crankshaft Oil Seal Replacement Components With Torque Specifications [01/2019 - 03/2019] (3 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | CRANKSHAFT PULLEY ASSEMBLY | *2 | V-RIBBED BELT |
| *3 | REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH | *4 | TIMING CHAIN COVER OIL SEAL |
| *5 | CRANKSHAFT PULLEY SET BOLT | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| MP grease | - | - |
