Components [06/2018 - 01/2019]
WARNING: This page is about a different variant/trim than selected.

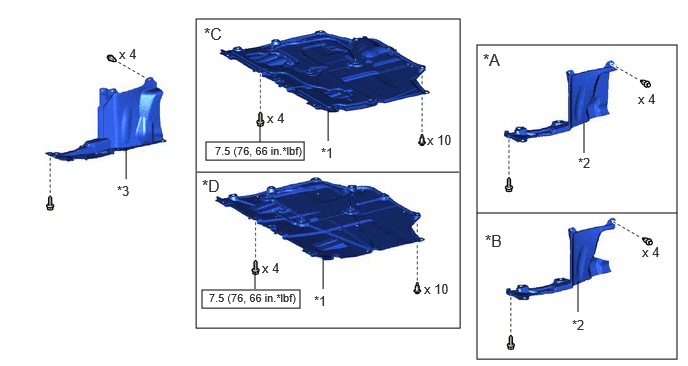

Fig 1: Engine Assembly Replacement Components With Torque Specifications [06/2018 - 01/2019] (1 Of 10)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for CVT | *B | for Manual Transaxle |
| *C | Type A | *D | Type B |
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *2 | REAR ENGINE UNDER COVER LH |
| *3 | REAR ENGINE UNDER COVER RH | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 2: Engine Assembly Replacement Components With Torque Specifications [06/2018 - 01/2019] (2 Of 10)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FUSIBLE LINK COVER | *2 | POSITIVE BATTERY TERMINAL |
| *3 | NEGATIVE BATTERY TERMINAL | *4 | BATTERY |
| *5 | NO. 2 BATTERY CLAMP | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |

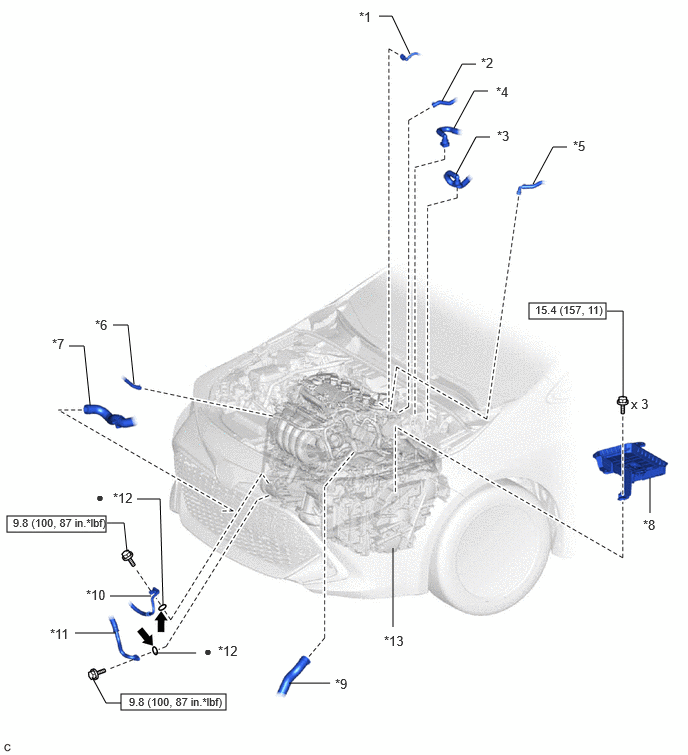

Fig 3: Engine Assembly Replacement Components With Torque Specifications [06/2018 - 01/2019] (3 Of 10)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FUEL TUBE SUB-ASSEMBLY | *2 | NO. 1 FUEL VAPOR FEED HOSE |
| *3 | INLET HEATER WATER HOSE | *4 | OUTLET HEATER WATER HOSE |
| *5 | NO. 1 VACUUM HOSE CONNECTOR | *6 | NO. 2 WATER BY-PASS HOSE |
| *7 | NO. 2 RADIATOR HOSE | *8 | BATTERY CLAMP SUB-ASSEMBLY |
| *9 | NO. 1 RADIATOR HOSE | *10 | DISCHARGE HOSE SUB-ASSEMBLY |
| *11 | SUCTION HOSE SUB-ASSEMBLY | *12 | O-RING |
| *13 | ENGINE ASSEMBLY WITH TRANSAXLE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Compressor oil ND-OIL 12 or equivalent | - | - |

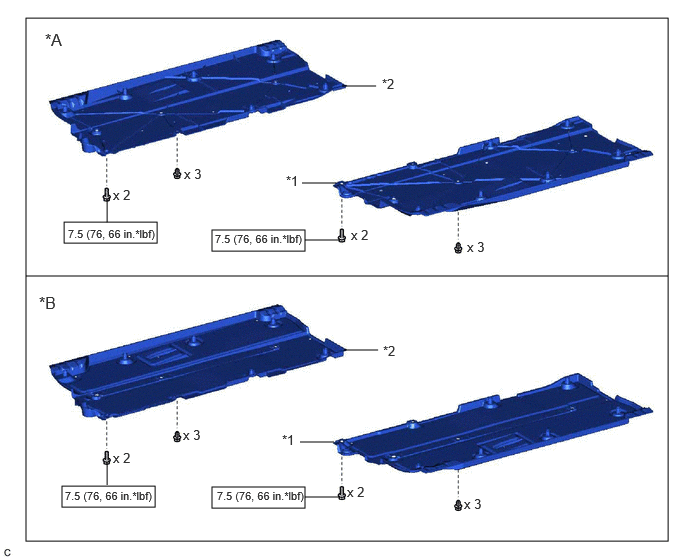

Fig 4: Engine Assembly Replacement Components With Torque Specifications [06/2018 - 01/2019] (4 Of 10)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *1 | FRONT FLOOR COVER LH | *2 | FRONT FLOOR COVER RH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

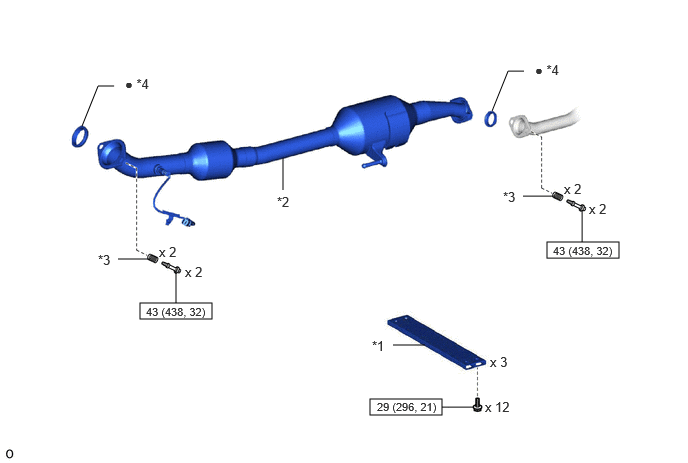

Fig 5: Engine Assembly Replacement Components With Torque Specifications [06/2018 - 01/2019] (5 Of 10)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT FLOOR CENTER BRACE | *2 | FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) |
| *3 | COMPRESSION SPRING | *4 | GASKET |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
Fig 6: Engine Assembly Replacement Components With Torque Specifications [06/2018 - 01/2019] (6 Of 10)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for CVT | *B | for Manual Transaxle |
| *1 | COLUMN HOLE COVER SILENCER SHEET | *2 | ENGINE MOUNTING INSULATOR LH |
| *3 | ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH | *4 | NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY |
| *5 | NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY | *6 | REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY LH |
| *7 | REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH | *8 | AIR CONDITIONER TUBE AND ACCESSORY ASSEMBLY |
| *9 | NO. 2 EARTH WIRE | *10 | FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |

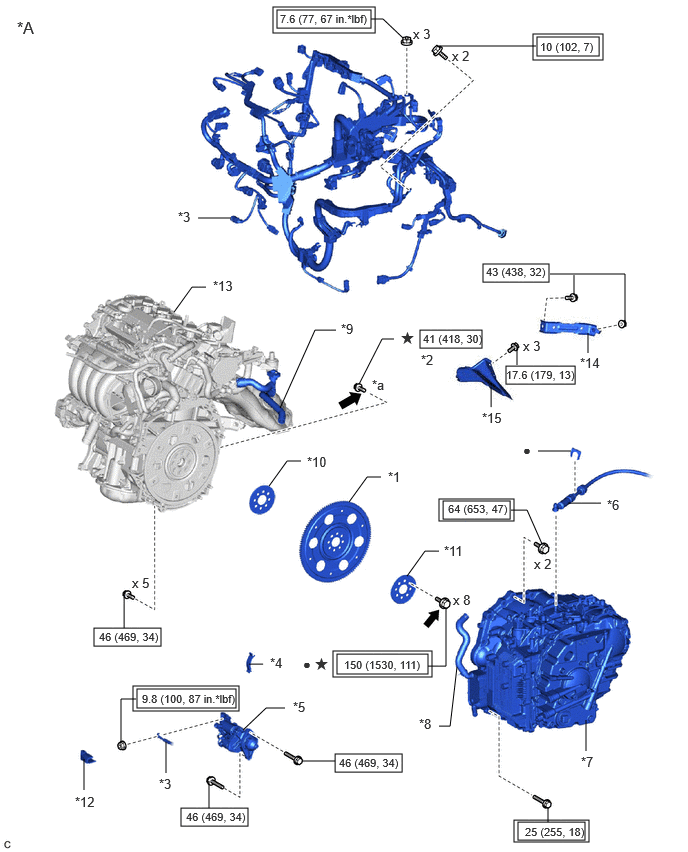

Fig 7: Engine Assembly Replacement Components With Torque Specifications [06/2018 - 01/2019] (7 Of 10)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for CVT | - | - |
| *1 | DRIVE PLATE AND RING GEAR SUB-ASSEMBLY | *2 | DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT |
| *3 | ENGINE WIRE | *4 | FLYWHEEL HOUSING SIDE COVER |
| *5 | STARTER ASSEMBLY | *6 | FLOOR SHIFT TRANSMISSION CONTROL SELECT CABLE |
| *7 | CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY | *8 | WATER INLET HOSE |
| *9 | WATER BY-PASS HOSE ASSEMBLY | *10 | NO. 1 CRANKSHAFT POSITION SENSOR PLATE |
| *11 | REAR DRIVE PLATE SPACER | *12 | STARTER COVER |
| *13 | ENGINE ASSEMBLY | *14 | MANIFOLD STAY |
| *15 | DRIVE SHAFT HEAT INSULATOR SUB-ASSEMBLY | - | - |
| *a | BLACK: x 1 SILVER: x 5 |
- | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | Adhesive 1324 | |
| * | Precoated part | - | - |
Fig 8: Engine Assembly Replacement Components With Torque Specifications [06/2018 - 01/2019] (8 Of 10)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Manual Transaxle | - | - |
| *1 | ENGINE WIRE | *2 | FLYWHEEL HOUSING SIDE COVER |
| *3 | FLYWHEEL SUB-ASSEMBLY | *4 | NO. 1 CLUTCH HOSE |
| *5 | TRANSMISSION CONTROL CABLE ASSEMBLY | *6 | STARTER ASSEMBLY |
| *7 | MANUAL TRANSAXLE ASSEMBLY | *8 | ENGINE ASSEMBLY |
| *9 | STARTER COVER | *10 | NO. 1 CRANKSHAFT POSITION SENSOR PLATE |
| *11 | CLUTCH COVER ASSEMBLY | *12 | CLUTCH DISC ASSEMBLY |
| *13 | MANIFOLD STAY | *14 | DRIVE SHAFT HEAT INSULATOR SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | Adhesive 1324 | |
| * | Precoated part | - | - |
Fig 9: Engine Assembly Replacement Components With Torque Specifications [06/2018 - 01/2019] (9 Of 10)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Manual Transaxle | - | - |
| *1 | CLUTCH RELEASE CYLINDER WITH BEARING ASSEMBLY | *2 | BLEEDER TO FLEXIBLE HOSE TUBE |
| *3 | CLUTCH RELEASE BLEEDER SUB-ASSEMBLY | *4 | CLUTCH RELEASE CYLINDER WITH BEARING ASSEMBLY TO BLEEDER TUBE |
| *5 | CLAMP | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| * | For use with union nut wrench | • | Non-reusable part |
| Clutch spline grease | * | Precoated part |
Fig 10: Engine Assembly Replacement Components With Torque Specifications [06/2018 - 01/2019] (10 Of 10)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | V-RIBBED BELT | *2 | GENERATOR ASSEMBLY |
| *3 | FLYWHEEL HOUSING UNDER COVER | *4 | COMPRESSOR ASSEMBLY WITH PULLEY |
| *5 | FUEL DELIVERY GUARD | *6 | ENGINE WIRE |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
