Components [06/2018 - ]

WARNING: This page is about a different variant/trim than selected.

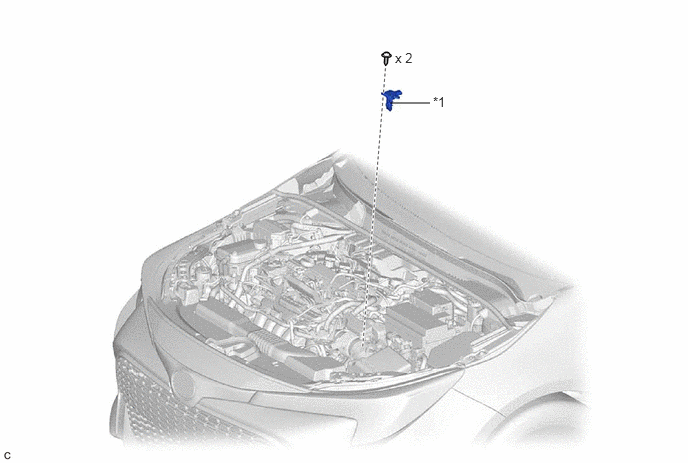

Fig 1: Mass Air Flow Meter Replacement Components
GTY850580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 MASS AIR FLOW METER SUB-ASSEMBLY - -
