Components [06/2018 - ]

WARNING: This page is about a different variant/trim than selected.

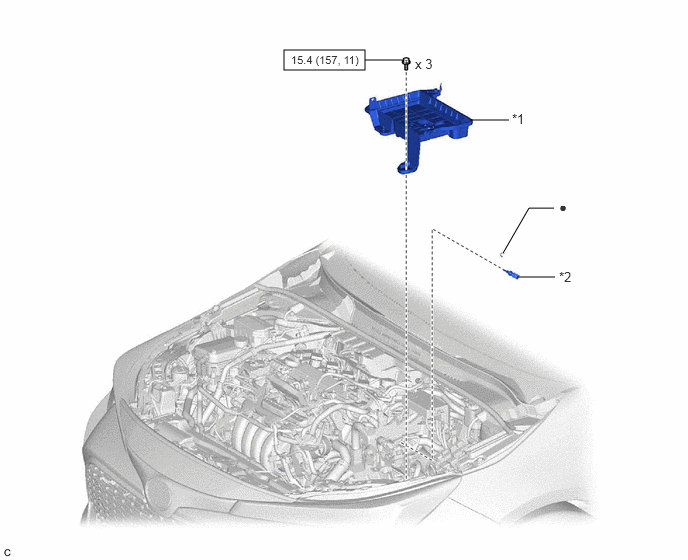

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specification
GTY869953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BATTERY CLAMP SUB-ASSEMBLY *2 ENGINE COOLANT TEMPERATURE SENSOR
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
