Components [06/2018 - ]

WARNING: This page is about a different variant/trim than selected.

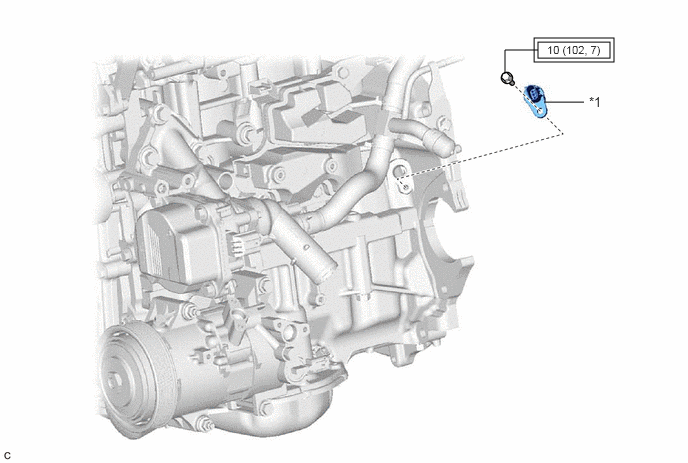

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specification
GTY900078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CRANKSHAFT POSITION SENSOR - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) - -
