Components [06/2021 - ]
WARNING: This page is about a different variant/trim than selected.

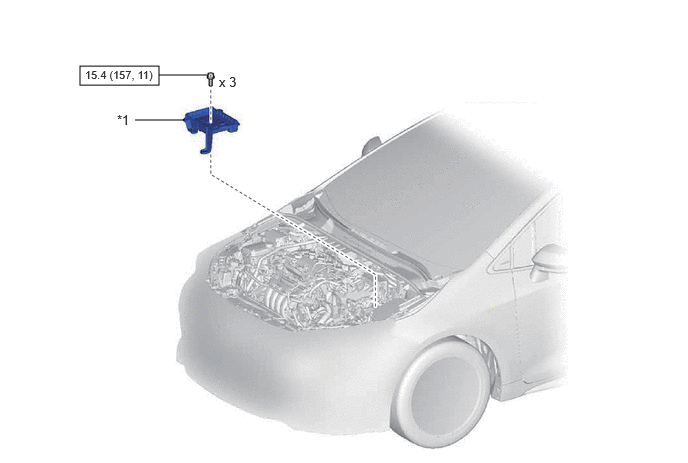

Fig 1: Transmission Control Cable (For TMC Made) Replacement Components With Torque Specifications [06/2021 - ] (1 Of 6)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BATTERY CLAMP SUB-ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

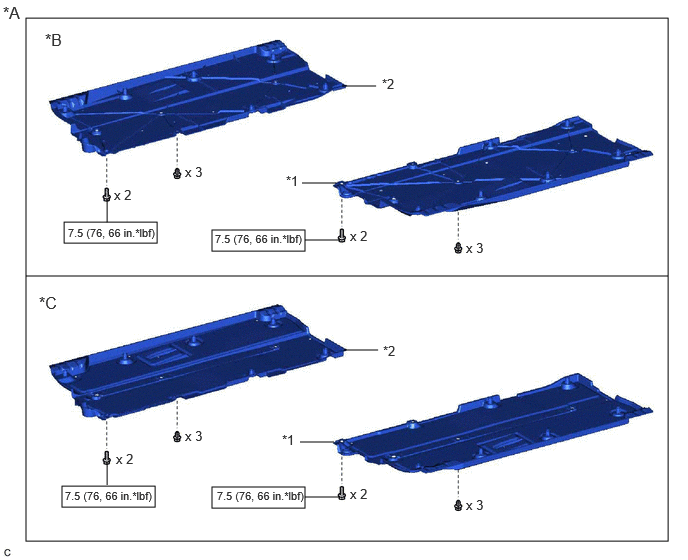

Fig 2: Transmission Control Cable (For TMC Made) Replacement Components With Torque Specifications [06/2021 - ] (2 Of 6)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Hatchback | *B | Type A |
| *C | Type B | - | - |
| *1 | FRONT FLOOR COVER LH | *2 | FRONT FLOOR COVER RH |
| *3 | FRONT FLOOR CENTER BRACE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

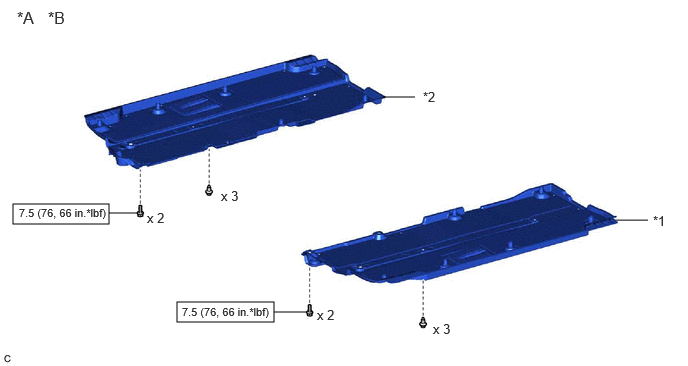

Fig 3: Transmission Control Cable (For TMC Made) Replacement Components With Torque Specifications [06/2021 - ] (3 Of 6)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | except Hatchback | *B | w/ Cover |
| *1 | FRONT FLOOR COVER LH | *2 | FRONT FLOOR COVER RH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

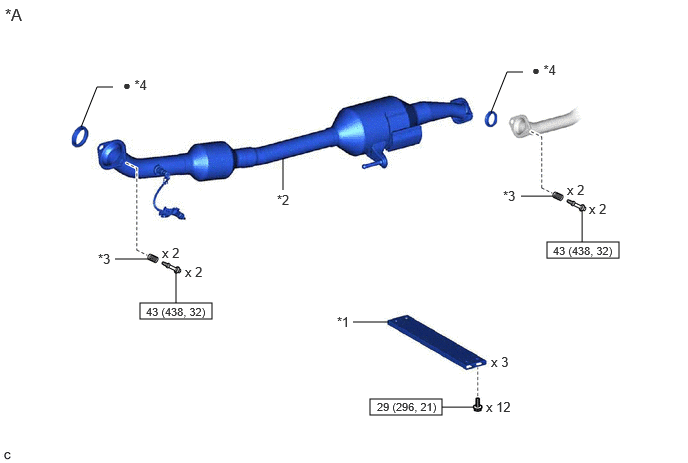

Fig 4: Transmission Control Cable (For TMC Made) Replacement Components With Torque Specifications [06/2021 - ] (4 Of 6)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Hatchback | - | - |
| *1 | FRONT FLOOR CENTER BRACE | *2 | FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) |
| *3 | COMPRESSION SPRING | *4 | GASKET |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

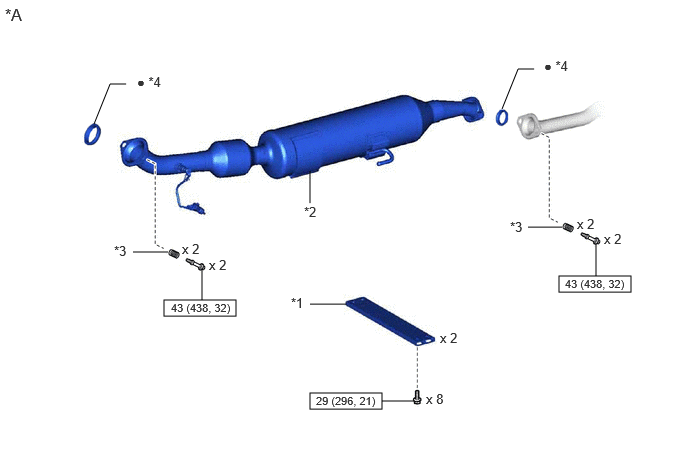

Fig 5: Transmission Control Cable (For TMC Made) Replacement Components With Torque Specifications [06/2021 - ] (5 Of 6)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | except Hatchback | - | - |
| *1 | FRONT FLOOR CENTER BRACE | *2 | FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) |
| *3 | COMPRESSION SPRING | *4 | GASKET |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

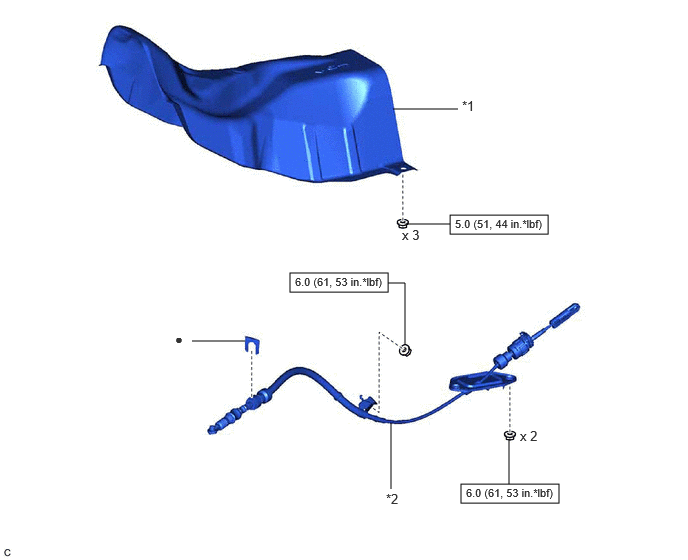

Fig 6: Transmission Control Cable (For TMC Made) Replacement Components With Torque Specifications [06/2021 - ] (6 Of 6)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT NO. 1 FLOOR HEAT INSULATOR | *2 | FLOOR SHIFT TRANSMISSION CONTROL SELECT CABLE |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
