Components [11/2022 - 09/2024]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Shift Stroke Sensor Replacement Components With Torque Specifications [11/2022 - 09/2024] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | RADIATOR SUPPORT OPENING COVER | *2 | INLET NO. 1 AIR CLEANER |
| *3 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *4 | AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY |
| *5 | AIR CLEANER CASE SUB-ASSEMBLY | *6 | NO. 2 VENTILATION HOSE |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

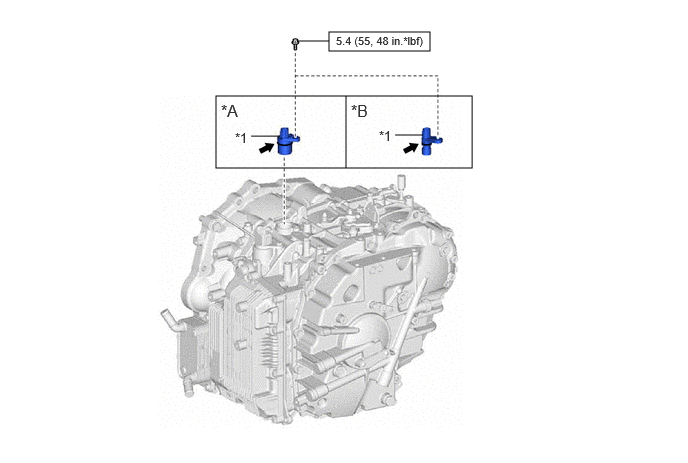

Fig 2: Shift Stroke Sensor Replacement Components With Torque Specifications [11/2022 - 09/2024] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *1 | SHIFT STROKE SENSOR | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | Toyota Genuine CVT Fluid FE |
