Components [06/2018 - ]

WARNING: This page is about a different variant/trim than selected.

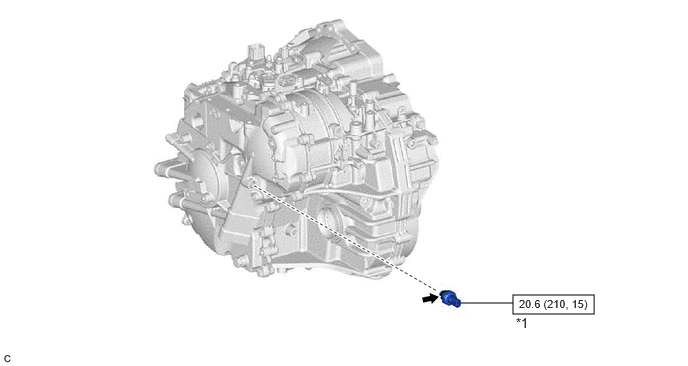

Fig 1: Oil Pressure Sensor Replacement Components With Torque Specifications
GTY897993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OIL PRESSURE SENSOR - -
N.m (kgf/cm, ft.lbf): Specified torque Toyota Genuine CVT Fluid FE
