Components [03/2023 - ]

WARNING: This page is about a different variant/trim than selected.

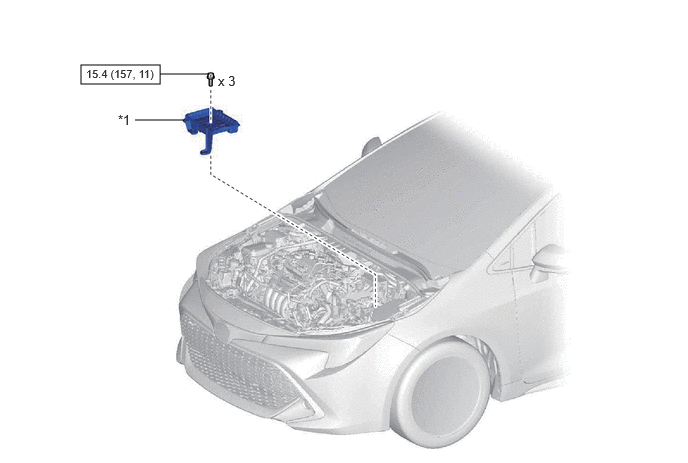

Fig 1: K121 Shift Lever Position Sensor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BATTERY CLAMP SUB-ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

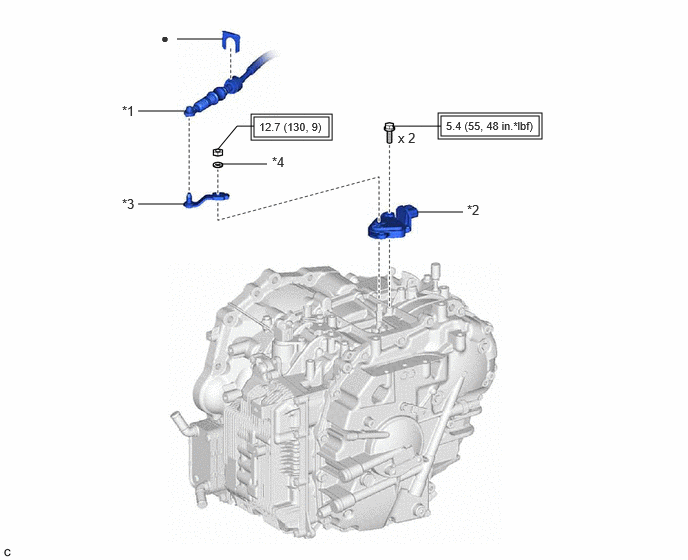

Fig 2: K121 Shift Lever Position Sensor Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	FLOOR SHIFT TRANSMISSION CONTROL SELECT CABLE	*2	SHIFT LEVER POSITION SENSOR
*3	TRANSMISSION CONTROL SHAFT LEVER	*4	WASHER
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part
