Components [06/2018 - 06/2021]
WARNING: This page is about a different variant/trim than selected.
Fig 1: K120 Park/Neutral Position Switch Replacement Components With Torque Specifications [06/2018 - 06/2021] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BATTERY CLAMP SUB-ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

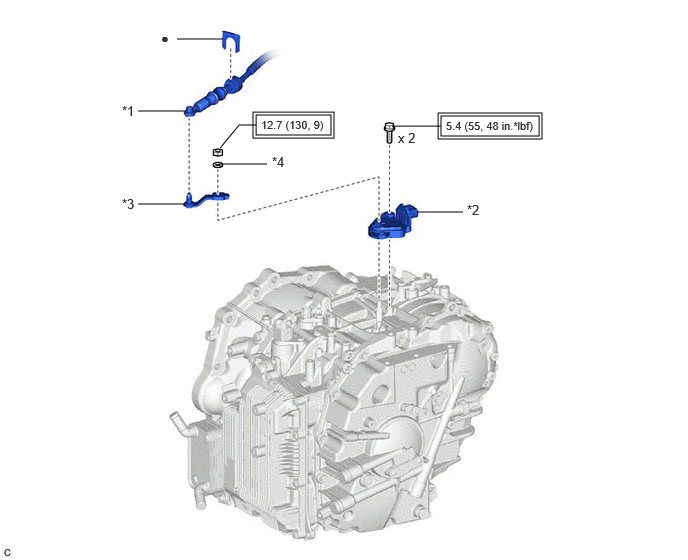

Fig 2: K120 Park/Neutral Position Switch Replacement Components With Torque Specifications [06/2018 - 06/2021] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FLOOR SHIFT TRANSMISSION CONTROL SELECT CABLE | *2 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY |
| *3 | TRANSMISSION CONTROL SHAFT LEVER | *4 | WASHER |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |
