Components [03/2019 - ]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Continuously Variable Transaxle Fluid Replacement Components With Torque Specifications [03/2019 - ] (1 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *C | Type C | - | - |
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *2 | REAR ENGINE UNDER COVER LH |
| *a | Type D: x 4 Type E: x 5 |
- | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

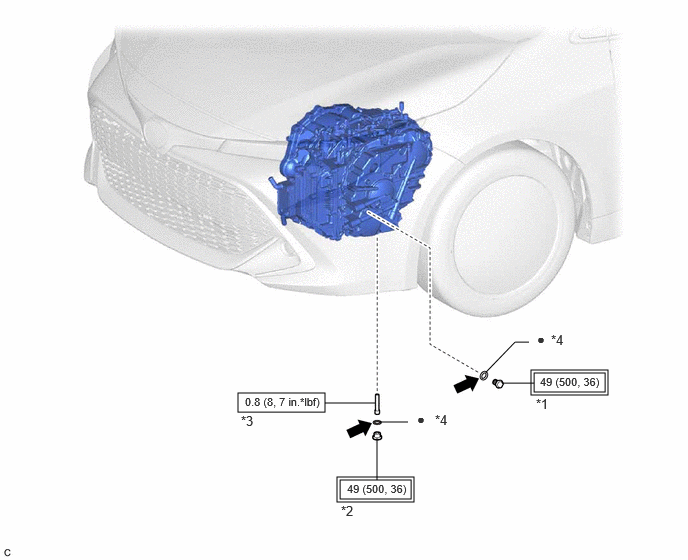

Fig 2: Continuously Variable Transaxle Fluid Replacement Components With Torque Specifications [03/2019 - ] (2 Of 2)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REFILL PLUG | *2 | OVERFLOW PLUG |
| *3 | OVERFLOW (CVT) TUBE | *4 | GASKET |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | Toyota Genuine CVT Fluid FE |
