Components [03/2023 - 09/2024]
WARNING: This page is about a different variant/trim than selected.
Fig 1: Continuously Variable Transaxle Assembly Replacement Components With Torque Specifications [03/2023 - 09/2024] (1 Of 15)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL | *2 | OUTER COWL TOP PANEL SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
Fig 2: Continuously Variable Transaxle Assembly Replacement Components With Torque Specifications [03/2023 - 09/2024] (2 Of 15)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | BATTERY CLAMP SUB-ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 3: Continuously Variable Transaxle Assembly Replacement Components With Torque Specifications [03/2023 - 09/2024] (3 Of 15)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Hatchback | *B | Type A |
| *C | Type B | - | - |
| *1 | FRONT FLOOR COVER LH | *2 | FRONT FLOOR COVER RH |
| *3 | FRONT FLOOR CENTER BRACE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 4: Continuously Variable Transaxle Assembly Replacement Components With Torque Specifications [03/2023 - 09/2024] (4 Of 15)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | except Hatchback | *B | w/ Cover |
| *1 | FRONT FLOOR COVER LH | *2 | FRONT FLOOR COVER RH |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 5: Continuously Variable Transaxle Assembly Replacement Components With Torque Specifications [03/2023 - 09/2024] (5 Of 15)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for Hatchback | - | - |
| *1 | FRONT FLOOR CENTER BRACE | *2 | FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) |
| *3 | COMPRESSION SPRING | *4 | GASKET |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
Fig 6: Continuously Variable Transaxle Assembly Replacement Components With Torque Specifications [03/2023 - 09/2024] (6 Of 15)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | except Hatchback | *B | for Double Wishbone Type Suspension |
| *C | for Torsion Beam Type Suspension | - | - |
| *1 | FRONT FLOOR CENTER BRACE | *2 | FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) |
| *3 | COMPRESSION SPRING | *4 | GASKET |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

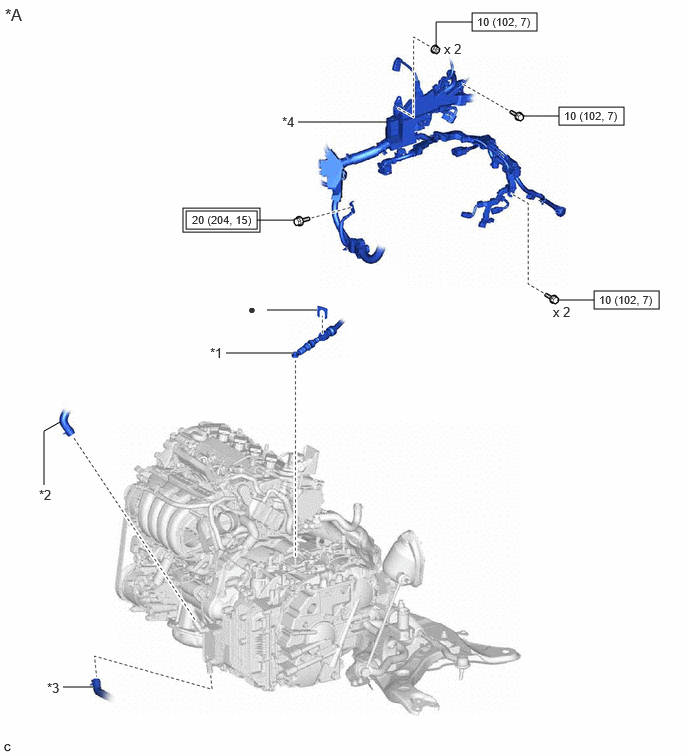

Fig 7: Continuously Variable Transaxle Assembly Replacement Components With Torque Specifications [03/2023 - 09/2024] (7 Of 15)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for K120 | - | - |
| *1 | FLOOR SHIFT TRANSMISSION CONTROL SELECT CABLE | *2 | INLET WATER HOSE |
| *3 | NO. 2 WATER BY-PASS HOSE | *4 | ENGINE WIRE |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |

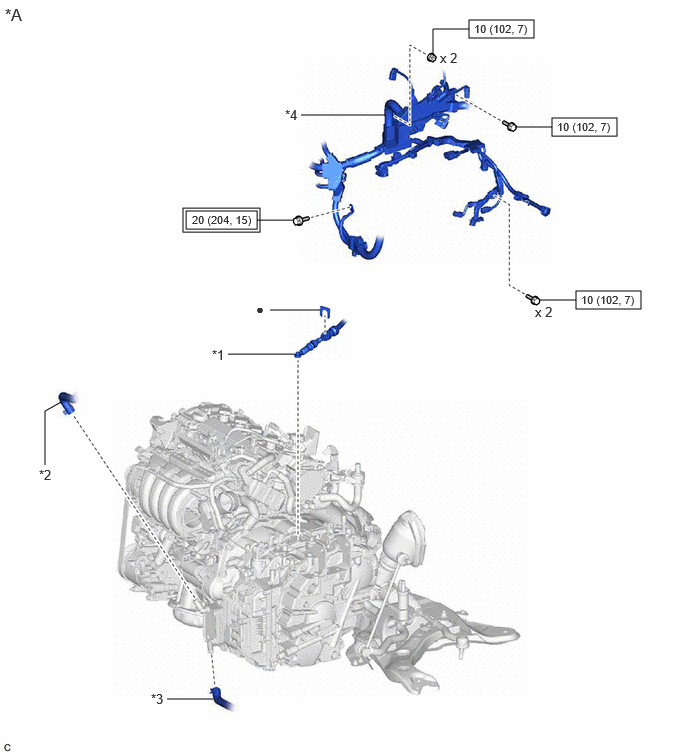

Fig 8: Continuously Variable Transaxle Assembly Replacement Components With Torque Specifications [03/2023 - 09/2024] (8 Of 15)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for K121 | - | - |
| *1 | FLOOR SHIFT TRANSMISSION CONTROL SELECT CABLE | *2 | INLET WATER HOSE |
| *3 | NO. 2 WATER BY-PASS HOSE | *4 | ENGINE WIRE |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |
Fig 9: Continuously Variable Transaxle Assembly Replacement Components With Torque Specifications [03/2023 - 09/2024] (9 Of 15)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FUEL DELIVERY GUARD | *2 | INLET HOSE |
| *3 | COLUMN HOLE COVER SILENCER SHEET | *4 | NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY |
| *5 | NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
Fig 10: Continuously Variable Transaxle Assembly Replacement Components With Torque Specifications [03/2023 - 09/2024] (10 Of 15)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY LH | *2 | REAR SIDE RAIL REINFORCEMENT SUB-ASSEMBLY RH |
| *3 | FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY | *4 | NO. 2 ENGINE MOVING CONTROL ROD |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |

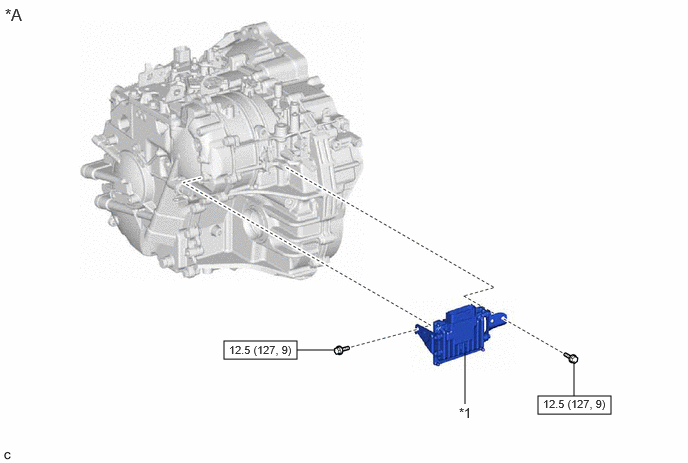

Fig 11: Continuously Variable Transaxle Assembly Replacement Components With Torque Specifications [03/2023 - 09/2024] (11 Of 15)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for K120 | - | - |
| *1 | TCM | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 12: Continuously Variable Transaxle Assembly Replacement Components With Torque Specifications [03/2023 - 09/2024] (12 Of 15)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | MANIFOLD STAY | *2 | DRIVE SHAFT HEAT INSULATOR SUB-ASSEMBLY |
| *3 | FLYWHEEL HOUSING UNDER COVER | *4 | DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT |
| *a | BLACK COLOR: x 1 SILVER COLOR: x 5 |
- | - |
| N.m (kgf/cm, ft.lbf): Specified torque | Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent | ||
| * | Precoated part | - | - |
Fig 13: Continuously Variable Transaxle Assembly Replacement Components With Torque Specifications [03/2023 - 09/2024] (13 Of 15)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | ENGINE MOUNTING INSULATOR LH | *2 | CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY |
| *3 | TORQUE CONVERTER ASSEMBLY | *4 | TRANSAXLE HOUSING TYPE T OIL SEAL |
| *5 | ENGINE ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| * | For use with SST | • | Non-reusable part |
| MP grease | Toyota Genuine Clutch Spline Grease or equivalent |
Fig 14: Continuously Variable Transaxle Assembly Replacement Components With Torque Specifications [03/2023 - 09/2024] (14 Of 15)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | ENGINE MOUNTING BRACKET LH | *2 | WIRE HARNESS CLAMP BRACKET |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 15: Continuously Variable Transaxle Assembly Replacement Components With Torque Specifications [03/2023 - 09/2024] (15 Of 15)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | Type A | *B | Type B |
| *C | for K121 | - | - |
| *1 | NO. 1 TRANSMISSION CONTROL CABLE BRACKET | *2 | TRANSMISSION CASE PLUG ASSEMBLY |
| *3 | BREATHER PLUG SUB-ASSEMBLY | *4 | BREATHER PLUG CAP |
| *5 | BREATHER PLUG | *6 | O-RING |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Toyota Genuine CVT Fluid FE | - | - |
