Components [09/2022 - 11/2022]
WARNING: This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

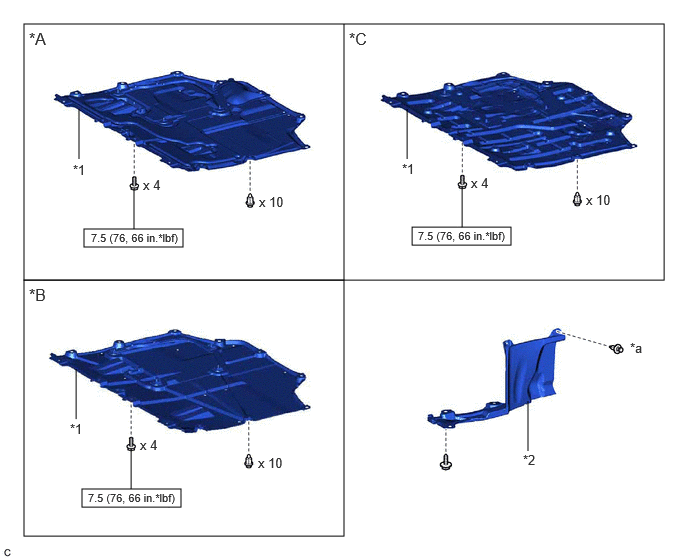

| Callout |
Description |
Callout |
Description |
| *A |
Type A |
*B |
Type B |
| *C |
Type C |
- |
- |
| *1 |
NO. 1 ENGINE UNDER COVER ASSEMBLY |
*2 |
REAR ENGINE UNDER COVER LH |
| *a |
Type D: x 4
Type E: x 5 |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

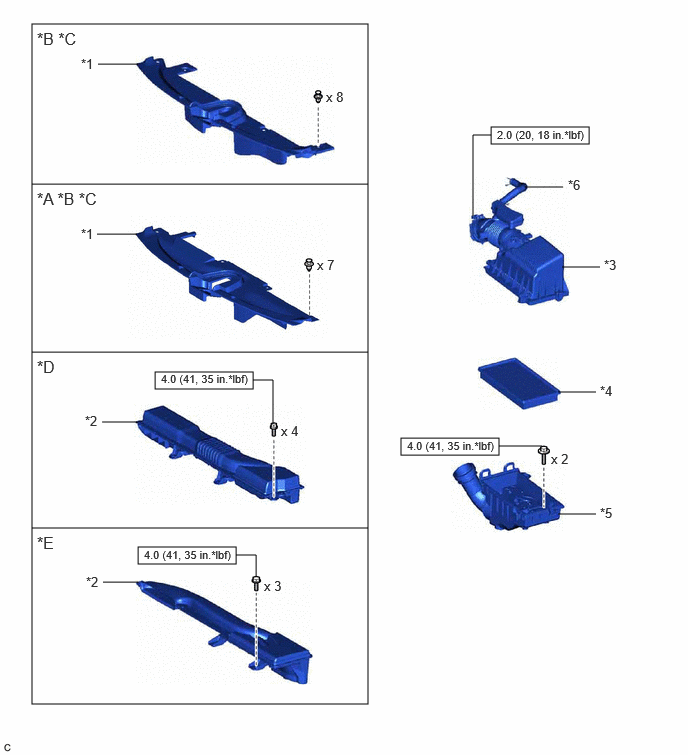

| *A |
for Hatchback |
*B |
for Sedan with Illumination |
| *C |
for Sedan without Illumination |
*D |
except TMC Made |
| *E |
for TMC Made |
- |
- |
| *1 |
RADIATOR SUPPORT OPENING COVER |
*2 |
INLET NO. 1 AIR CLEANER |
| *3 |
AIR CLEANER CAP WITH AIR CLEANER HOSE |
*4 |
AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY |
| *5 |
AIR CLEANER CASE SUB-ASSEMBLY |
*6 |
NO. 2 VENTILATION HOSE |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

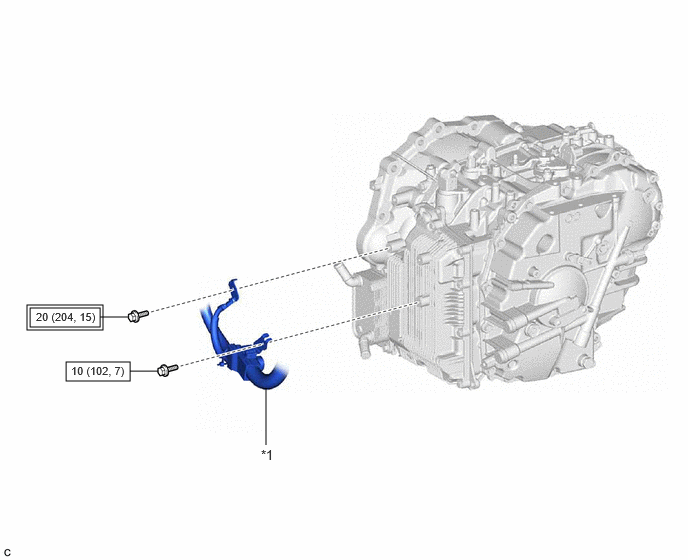

| *1 |
ENGINE WIRE |
- |
- |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Callout |
Description |
Callout |
Description |

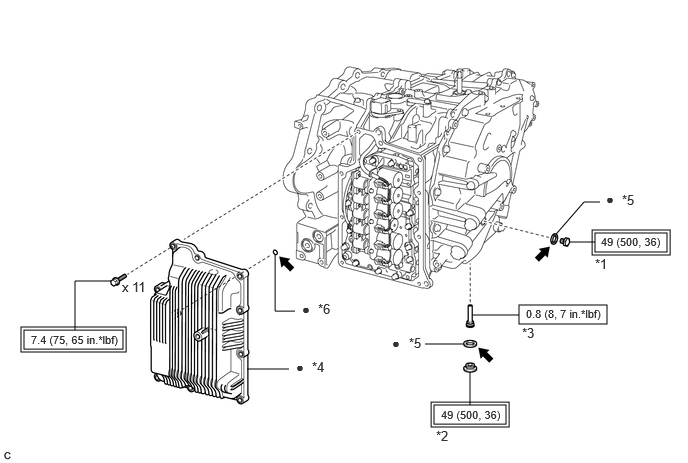

| *1 |
REFILL PLUG |
*2 |
OVERFLOW PLUG |
| *3 |
OVERFLOW (CVT) TUBE |
*4 |
TRANSAXLE SIDE COVER SUB-ASSEMBLY |
| *5 |
GASKET |
*6 |
O-RING |
|
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
| • |
Non-reusable part |
|
Toyota Genuine CVT Fluid FE |
