Components [03/2019 - 09/2022]

WARNING: This page is about a different variant/trim than selected.

Fig 1: Oil Pan Replacement Components With Torque Specifications [03/2019 - 09/2022] (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	Type A	*B	Type B
*C	Type C	-	-
*1	NO. 1 ENGINE UNDER COVER ASSEMBLY	*2	REAR ENGINE UNDER COVER LH
*a	Type D: x 4 Type E: x 5	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

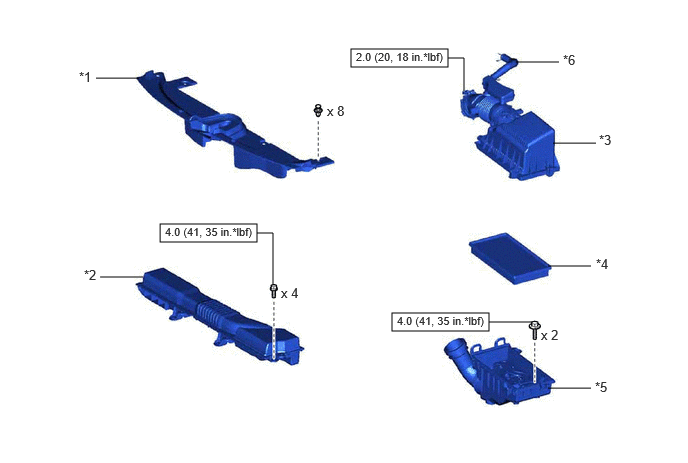

Fig 2: Oil Pan Replacement Components With Torque Specification [03/2019 - 09/2022] (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	RADIATOR SUPPORT OPENING COVER	*2	INLET NO. 1 AIR CLEANER
*3	AIR CLEANER CAP WITH AIR CLEANER HOSE	*4	AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
*5	AIR CLEANER CASE SUB-ASSEMBLY	*6	NO. 2 VENTILATION HOSE
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

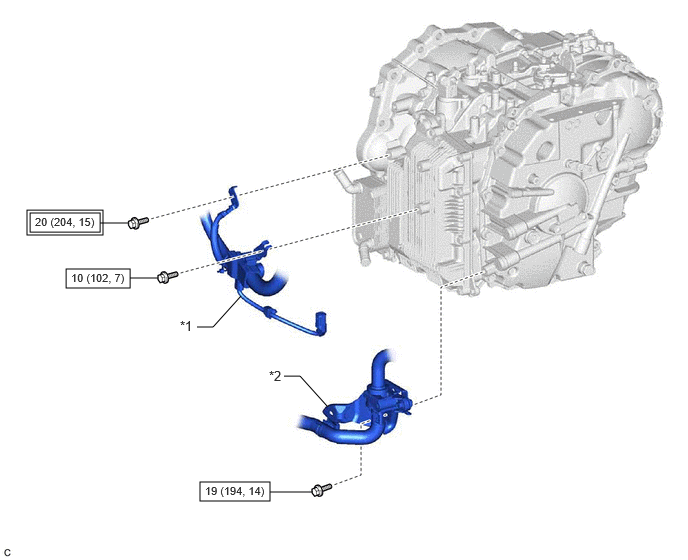

Fig 3: Oil Pan Replacement Components With Torque Specifications [03/2019 - 09/2022] (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	ENGINE WIRE	*2	NO. 1 WATER HOSE CLAMP BRACKET
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque

Fig 4: Oil Pan Replacement Components With Torque Specifications [03/2019 - 09/2022] (4 Of 4)

Callout	Description	Callout	Description
*1	REFILL PLUG	*2	OVERFLOW PLUG
*3	OVERFLOW (CVT) TUBE	*4	TRANSAXLE SIDE COVER SUB-ASSEMBLY
*5	GASKET	*6	O-RING
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part		Toyota Genuine CVT Fluid FE
