Removal [09/2019 - 09/2022]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 9 [09/2019 - 06/2021] , or refer to PROCEDURE - Step 9 [06/2021 - 09/2022]

  2. REMOVE REAR ENGINE UNDER COVER LH

    Refer to PROCEDURE - Step 10 [09/2019 - 06/2021] , or refer to PROCEDURE - Step 10 [06/2021 - 09/2022]

  3. DRAIN ENGINE COOLANT (for Fully Sealed Type)

    Refer to PROCEDURE - Step 1

  4. DRAIN ENGINE COOLANT (for Non-Fully Sealed Type)

    Refer to PROCEDURE - Step 2

  5. DRAIN CONTINUOUSLY VARIABLE TRANSAXLE FLUID

    See step  3

  6. DISCONNECT NO. 4 WATER BY-PASS HOSE

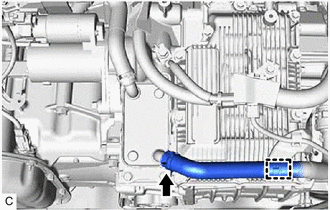

    1. Disengage the hose clamp to disconnect the No. 4 water by-pass hose from the No. 1 water hose clamp bracket.
      GTY845498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Slide the clip and disconnect the No. 4 water by-pass hose from the transmission oil cooler.
  7. DISCONNECT INLET WATER HOSE

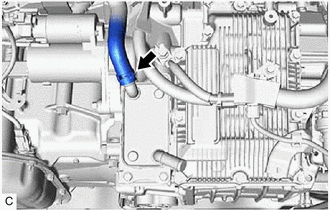

    1. Slide the clip and disconnect the inlet water hose from the transmission oil cooler.
      GTY845499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE TRANSMISSION OIL COOLER

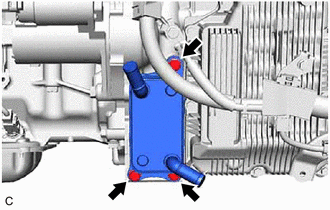

    1. Remove the 3 bolts and transmission oil cooler from the transaxle housing.
      GTY845802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 O-rings from the transaxle housing.
      GTY787392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
