Components [03/2019 - 09/2022]

WARNING: This page is about a different variant/trim than selected.

Fig 1: Oil Cooler Replacement Components With Torque Specifications [03/2019 - 09/2022] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	Type A	*B	Type B
*C	Type C	-	-
*1	NO. 1 ENGINE UNDER COVER ASSEMBLY	*2	REAR ENGINE UNDER COVER LH
*a	Type D: x 4 Type E: x 5	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

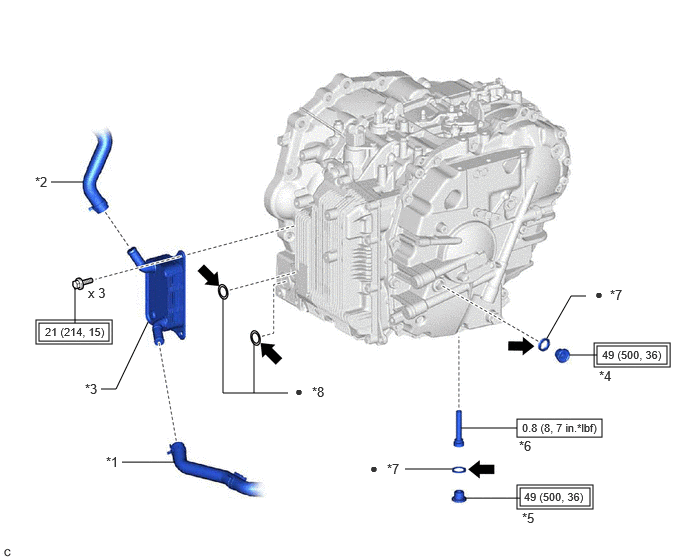

Fig 2: Oil Cooler Replacement Components With Torque Specifications [03/2019 - 09/2022] (2 Of 2)

Callout	Description	Callout	Description
*1	NO. 4 WATER BY-PASS HOSE	*2	INLET WATER HOSE
*3	TRANSMISSION OIL COOLER	*4	REFILL PLUG
*5	OVERFLOW PLUG	*6	OVERFLOW (CVT) TUBE
*7	GASKET	*8	O-RING
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part		Toyota Genuine CVT fluid FE
