Section 167 (Engine Control System (M20A-FKS) - Diagnostic Codes (P12D4-P1362))
>>
SFI System
>>
DTC P1360-01: "A" Camshaft Position Actuator Bank 1 General Electrical Failure [09/2022 - 11/2022]
>>

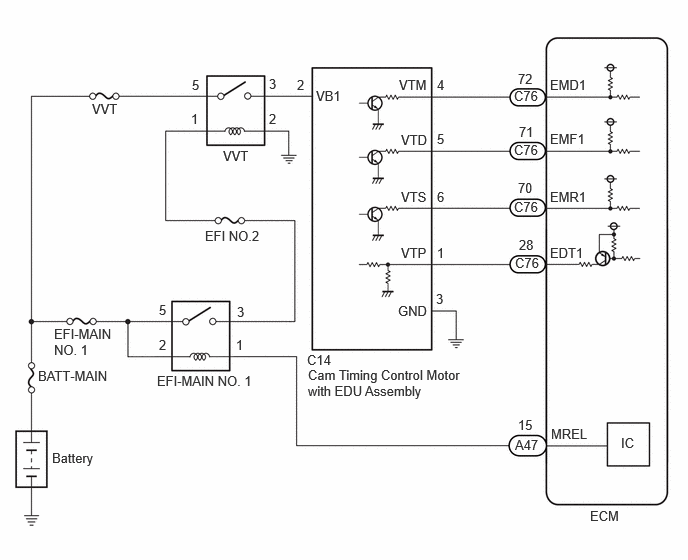

Wiring Diagram
DTC P1360-01: "A" Camshaft Position Actuator Bank 1 General Electrical Failure [09/2022 - 11/2022]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
for TMMMS Made
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for TMC Made
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
